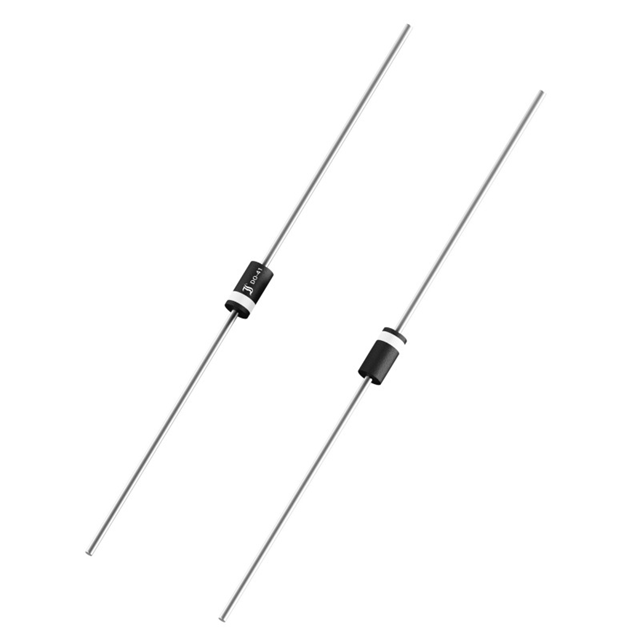

ZPY1

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Zener - Single

Package / Case :

DO-204AL, DO-41, Axial

Impedance :

3Ohm

Pin Count :

2

Current - Reverse Leakage @ Vr :

500nA @ 9V

Power Dissipation :

1.3W

Diode Element Material :

SILICON

Series :

Automotive, AEC-Q101

Number of Terminations :

2

Voltage Tolerance :

5%

Max Power Dissipation :

1.3W

Zener Current :

85mA

Test Current :

50mA

Number of Pins :

2

ECCN Code :

EAR99

Polarity :

Unidirectional

Tolerance :

±5%

Terminal Form :

Wire

Reference Voltage :

12V

Number of Elements :

1

HTS Code :

8541.10.00.50

Terminal Finish :

Tin/Silver (Sn/Ag)

Diode Type :

ZENER DIODE

Mount :

Through Hole

Impedance-Max :

3Ohm

Case Connection :

Isolated

Operating Temperature :

175°C

Zener Voltage :

12V

Voltage Tol-Max :

5.39%

JESD-609 Code :

e2

Factory Lead Time :

11 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2016

Element Configuration :

Single

Radiation Hardening :

No

Pbfree Code :

yes

Packaging :

Tape and Reel (TR)

RoHS Status :

ROHS3 Compliant

Mounting Type :

Through Hole
