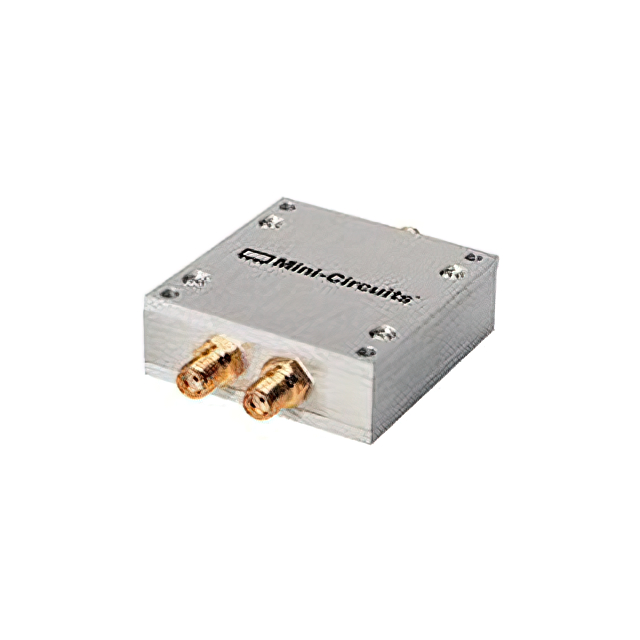

ZN2PD2-63-S+

Manufacturer :

Mini-Circuits

Product Category :

RF Power Dividers/Splitters

Impedance :

50 Ohms

ECCN Code :

EAR99

Manufacturer :

Mini-Circuits

Packaging :

Tray

Input Power-Max (CW) :

46.02 dBm

Product Type :

Signal Conditioning

Additional Feature :

SMA

Package / Case :

Module, SMA Connectors

Product :

Power Dividers

VSWR-Max :

1.4

Operating Frequency-Max :

6000 MHz

RF/Microwave Device Type :

SPLITTER AND COMBINER

Bandwidth :

5650 MHz

Termination Style :

SMA

Product Category :

Signal Conditioning

Brand :

Mini-Circuits

Specifications :

Isolation (Min) 18dB, 1.4 VSWR (Typ), 5° Imbalance (Max)

Frequency Range :

350 MHz to 6000 MHz

Size / Dimension :

4.500" L x 2.500" W x 0.670" H (114.30mm x 63.50mm x 17.02mm)

Maximum Operating Temperature :

+ 100 C

Series :

-

Characteristic Impedance :

50 Ω

Reach Compliance Code :

Unknown

Minimum Operating Temperature :

- 55 C

Construction :

Coaxial

Package :

Tray

RoHS :

Details

Operating Frequency-Min :

350 MHz

Product Status :

Active

Insertion Loss :

0.9dB

Frequency :

350 MHz ~ 6 GHz

Subcategory :

Filters
