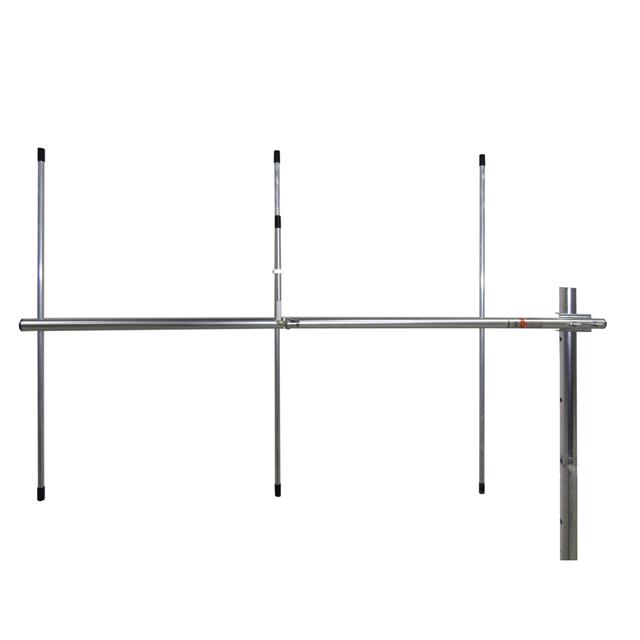

YS1503
Or copy the link below:
- Mfr.Part #
- YS1503
- Manufacturer
- TE Connectivity Laird
- Package / Case
- Datasheet
- Download
- Description
- RF ANT 162MHZ YAGI N FEM BRKT MT
- Stock
- 36
- In Stock ：
- 36
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Laird
- Product Category :
- RF Antennas
- Height (Max) :
- 41.500 (105.41cm)
- Manufacturer :
- TE Connectivity
- Type :
- Passive Antenna
- Frequency Range :
- 150MHz ~ 174MHz
- Antenna Type :
- Yagi, 3-Element
- Package :
- Bulk
- Impedance :
- 50 Ohms
- Power Rating :
- 500 W
- Termination Style :
- Connector
- Number of Bands :
- 1
- Product Category :
- Antennas
- Series :
- *
- Gain :
- 7.1dBd
- Antenna Connector Type :
- N Female
- Center Frequency :
- 162 MHz
- Brand :
- TE Connectivity / Laird External Antennas
- Ingress Protection :
- -
- Mounting Type :
- Bracket Mount
- Product Type :
- ISM Antennas - ISM, MICS, UHF, VHF, UWB
- Return Loss :
- -
- RF Family/Standard :
- -
- Applications :
- -
- Product :
- Outdoor Antennas
- Frequency Group :
- VHF (f < 300MHz)
- Features :
- -
- Product Status :
- Active
- Frequency (Center/Band) :
- 162MHz
- Style :
- 3 Element
- VSWR :
- 1.5
- Application :
- Point to Point, Multi Point Outdoor Antennas Applications, Private Oraganizations, Government Agencies, Transport, Railroad Switching, Remote Locations, Oil Fields, Weather Conditions, Meter Data Transmissions, Utilities
- Mounting Style :
- Bracket Pole/Wall/U V Bolt Mount
- Termination :
- N Type Female
- Cable Type :
- -
- Subcategory :
- Antennas
- Datasheets
- YS1503
1 Bands Yagi, 3-Element VHF (f < 300MHz) Bracket Mount N Type Female 162MHz 7.1dBd 41.500 (105.41cm) -
YS1503 Overview
Various applications are available for this type of Passive Antenna.It is suitable for general RF Antennas when it is set to Bracket Mount.There is a Antenna RF in the * series.
YS1503 Features
Type of Passive Antenna
With Bracket Mount
* series
YS1503 Applications
There are a lot of TE Connectivity
YS1503 RF Antennas applications.
- Lightings
- Rectifiers
- Inverters
- Satellites
- Transmission
- Cellphones
- Laptops
- Marine Navigation
- Avionics
- GPS
