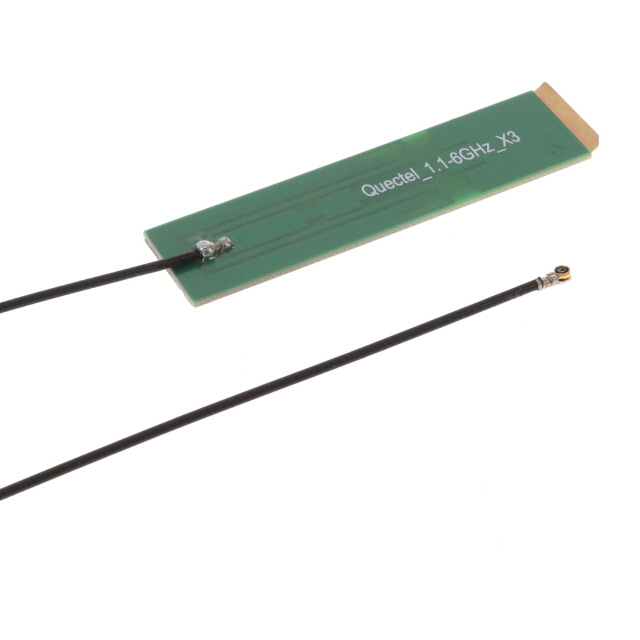

YP0009BA

Manufacturer :

Quectel

Product Category :

RF Antennas

Cable Type :

193 mm RF1.13

Height :

0.85 mm

Termination :

IPEX MHF4

Series :

-

VSWR :

1.1, 1.6, 1.7, 1.8, 2, 2.5, 2.77

Product Category :

Antennas

Width :

13 mm

Antenna Type :

PCB Trace

Frequency (Center/Band) :

829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 3.65GHz, 4.5GHz, 5.5GHz

Frequency Range :

698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz

Product :

PCB Antennas

Product Type :

Cellular Antennas - GSM, LTE, 2G/3G/4G/5G

Mounting Style :

Adhesive Mount

Brand :

Quectel

Style :

I-Bar

Product Status :

Active

Manufacturer :

Quectel

Impedance :

50 Ohms

Frequency Group :

Wide Band

Application :

Cellular Radio, Wireless Applications

RF Family/Standard :

Cellular

Package :

Bag

Ingress Protection :

-

Mounting Type :

Adhesive

Features :

Cable - 193mm

Return Loss :

-

Gain :

1.2dBi, 3.3dBi, 3.3dBi, 3.9dBi, 4.5dBi, 4.67dBi, 4.6dBi

Minimum Operating Temperature :

- 20 C

Type :

Passive Antenna

Antenna Connector Type :

IPEX MHF4

Subcategory :

Antennas

Length :

49 mm

Center Frequency :

1176 MHz, 1190 MHz, 1202 MHz, 1227 MHz, 1242 MHz, 1268 MHz, 1278 MHz, 1575 MHz, 1602 MHz, 1621 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2500 MHz, 3500 MHz, 4500 MHz, 5500 MHz

Termination Style :

Connector

Applications :

6g

Number of Bands :

8

Height (Max) :

0.037" (0.95mm)

Maximum Operating Temperature :

+ 80 C
