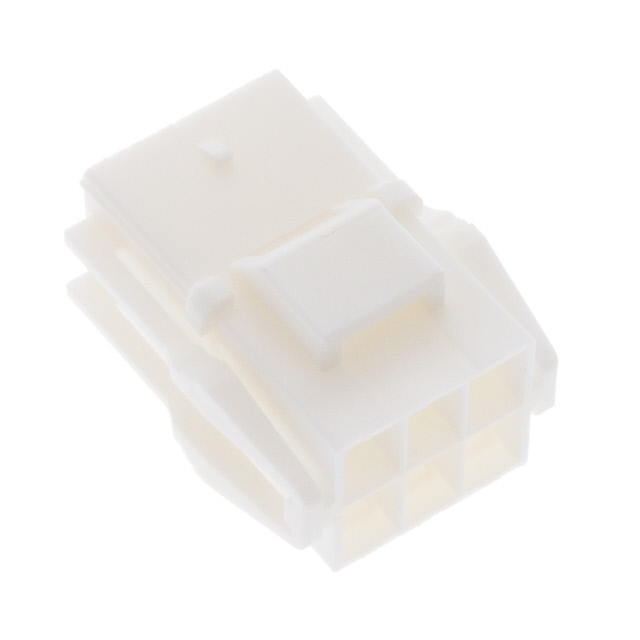

YLR-06V

Manufacturer :

JST

Product Category :

Rectangular Connector Housings

Pbfree Code :

yes

Fastening Type :

Latch Holder

Contact Termination :

Crimp

Contact Finish - Mating :

NOT SPECIFIED

Pitch :

0.177 4.50mm

IEC Conformance :

No

Series :

YL

Number of Rows :

2

Packaging :

Bulk

RoHS Status :

RoHS Compliant

Height :

15.6mm

Min Operating Temperature :

-25°C

ECCN Code :

EAR99

Mounting Type :

Free Hanging (In-Line)

Housing Material :

Polyamide

Color :

White

Orientation :

Straight

Factory Lead Time :

18 Weeks

Contact Type :

Male Pin

Gender :

FEMALE

Max Voltage Rating (AC) :

300V

Wire Gauge (Max) :

26 AWG

Connector Type :

Receptacle

Max Current Rating :

8A

DIN Conformance :

No

Note :

Contacts Not Included

Current Rating :

8A

Max Operating Temperature :

90°C

Contact Material :

NOT SPECIFIED

Number of Positions :

6

Option :

GENERAL PURPOSE

MIL Conformance :

No

Voltage - Rated :

300V

Wire Gauge (Min) :

16 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length :

20.8mm

Depth :

26.6mm
