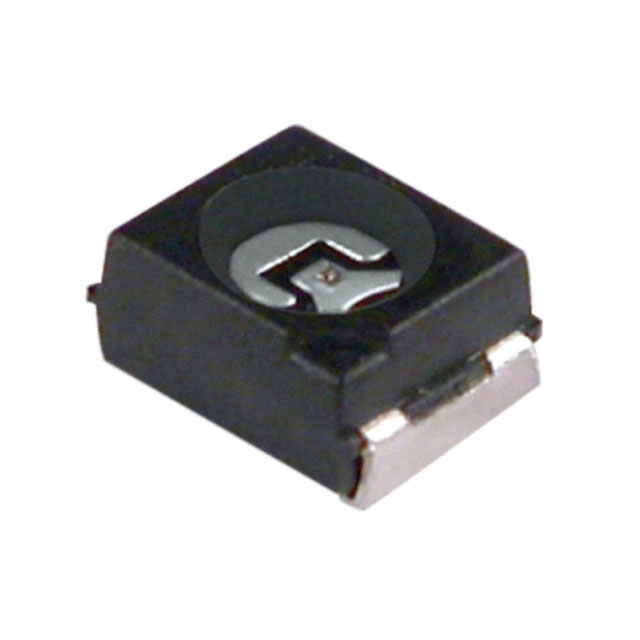

XZM2ACR45SB
Or copy the link below:
- Mfr.Part #
- XZM2ACR45SB
- Manufacturer
- SunLED
- Package / Case
- 2-PLCC
- Datasheet
- Download
- Description
- LED RED CLEAR 2PLCC SMD
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- SunLED
- Product Category :
- Color :
- Red
- Configuration :
- Standard
- Operating Temperature (Min) :
- -40°C
- Viewing Angle :
- 120°
- Number of Functions :
- 1
- Pbfree Code :
- yes
- Current - Test :
- 20mA
- Number of Terminations :
- 2
- Packing Method :
- Tape and Reel
- Size / Dimension :
- 3.20mm Lx2.80mm W
- Height :
- 2.1mm
- RoHS Status :
- ROHS3 Compliant
- Lens Color :
- Colorless
- Series :
- NINJA
- Terminal Pitch :
- 3.1mm
- Wavelength - Dominant :
- 625nm
- Package / Case :
- 2-PLCC
- Factory Lead Time :
- 6 Weeks
- Voltage - Forward (Vf) (Typ) :
- 2.2V
- Optoelectronic Device Type :
- SINGLE COLOR LED
- Lens Style :
- Round with Flat Top
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Wavelength - Peak :
- 640nm
- Packaging :
- Cut Tape (CT)
- Lens Size :
- 2.40mm Dia
- Mounting Type :
- Surface Mount
- Forward Current-Max :
- 0.05A
- Number of Pins :
- 2
- Mount :
- Surface Mount
- Operating Temperature (Max) :
- 85°C
- ECCN Code :
- EAR99
- Luminous Intensity :
- 347 mcd
- Lens Transparency :
- Clear
- Published :
- 2010
- Datasheets
- XZM2ACR45SB
