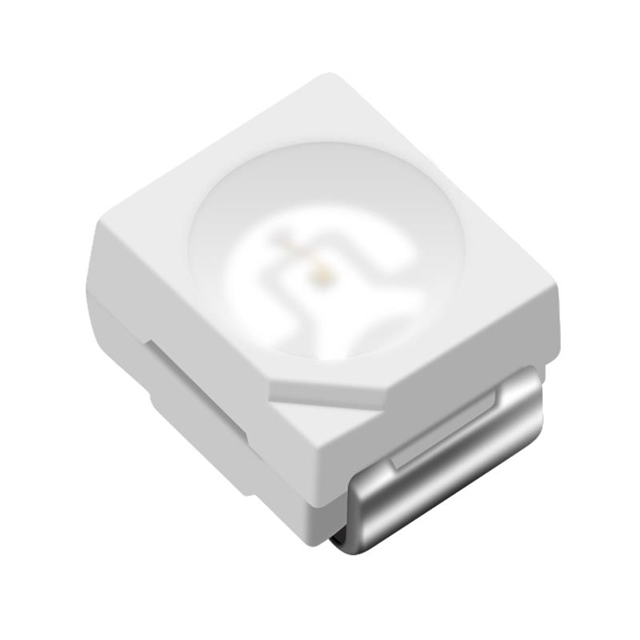

XZDGK45WT

Manufacturer :

SunLED

Product Category :

Packing Method :

TR, 7 INCH

Lens Transparency :

Clear

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Luminous Intensity :

497.0 mcd

Package / Case :

2-PLCC

Overall Height :

1.8mm

Configuration :

Standard

Optoelectronic Device Type :

SINGLE COLOR LED

Forward Current-Max :

0.03A

Color :

Green

Mounting Type :

Surface Mount

Published :

2016

Operating Temperature (Max) :

85°C

Lens Style :

Round with Flat Top

Current - Test :

20mA

Wavelength - Peak :

515nm

Number of Functions :

1

Height (Max) :

2.10mm

Factory Lead Time :

6 Weeks

Number of Terminations :

2

Terminal Pitch :

3.1mm

Size / Dimension :

3.20mm Lx2.80mm W

Millicandela Rating :

497mcd

Operating Temperature (Min) :

-40°C

Wavelength - Dominant :

525nm

Voltage - Forward (Vf) (Typ) :

3.3V

Pbfree Code :

yes

Lens Size :

2.40mm Dia

Lens Color :

Colorless

RoHS Status :

ROHS3 Compliant

Packaging :

Tape and Reel (TR)

Viewing Angle :

120°

Surface Mount :

yes
