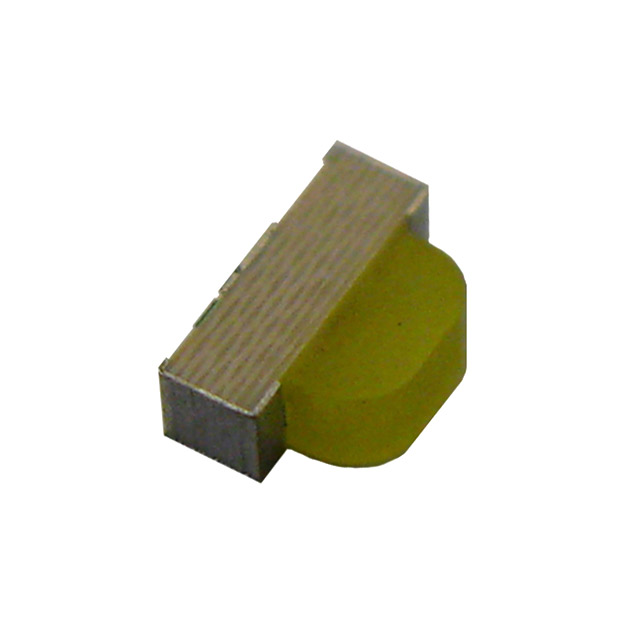

XZCWD56F
Or copy the link below:
- Mfr.Part #
- XZCWD56F
- Manufacturer
- SunLED
- Package / Case
- 2-SMD, No Lead
- Datasheet
- Download
- Description
- LED RA WHITE YLW FLUOR SMD
- Stock
- 26,469
- In Stock ：
- 26,469
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- SunLED
- Product Category :
- Configuration :
- Single
- Color :
- White
- Overall Height :
- 1mm
- Lens Style :
- Rectangle with Domed Top
- Millicandela Rating :
- 178mcd
- Package / Case :
- 2-SMD, No Lead
- Surface Mount :
- yes
- ECCN Code :
- EAR99
- Shape :
- RECTANGULAR
- RoHS Status :
- ROHS3 Compliant
- Packing Method :
- Tape and Reel
- Optoelectronic Device Type :
- SINGLE COLOR LED
- Number of Terminations :
- 3
- Luminous Intensity :
- 198.0 mcd
- HTS Code :
- 8541.40.20.00
- Height (Max) :
- 1.00mm
- Viewing Angle :
- 120°
- Operating Temperature (Min) :
- -40°C
- Mounting Type :
- Surface Mount, Right Angle
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Current - Test :
- 20mA
- Operating Temperature (Max) :
- 85°C
- Published :
- 2014
- Size / Dimension :
- 3.00mm Lx2.00mm W
- Number of Functions :
- 1
- Packaging :
- Tape and Reel (TR)
- Forward Current-Max :
- 0.03A
- Lens Color :
- Yellow
- Pbfree Code :
- yes
- Lens Size :
- 2.00mmx1.00mm
- Voltage - Forward (Vf) (Typ) :
- 3.3V
- Datasheets
- XZCWD56F
XZCWD56F datasheet pdf and LED Indication - Discrete product details from SunLED stock available at
