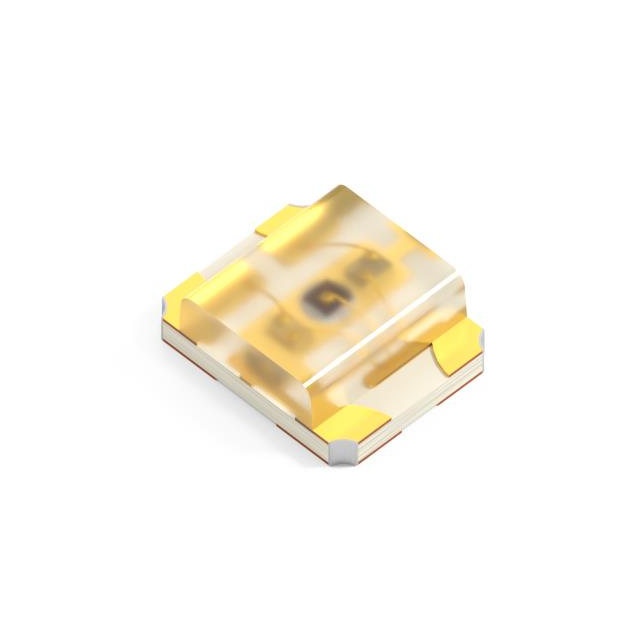

XZCBDMDKDG62W-2

Manufacturer :

SunLED

Product Category :

Optoelectronic Device Type :

TRIPLE COLOR LED

Shape :

RECTANGULAR

Lens Color :

Colorless

ECCN Code :

EAR99

Millicandela Rating :

79mcd Red, 278mcd Green, 69mcd Blue

Number of Terminations :

4

Configuration :

Common Anode

Mount :

Surface Mount

Voltage - Forward (Vf) (Typ) :

1.95V Red 3.3V Green 3.3V Blue

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Size / Dimension :

1.60mm Lx1.26mm W

Factory Lead Time :

6 Weeks

Package / Case :

0605 (1613 Metric)

Forward Current-Max :

0.03A

Mounting Type :

Surface Mount

Pbfree Code :

yes

HTS Code :

8541.40.20.00

Lens Size :

1.10mmx1.26mm

Packaging :

Tape and Reel (TR)

Height :

520μm

Packing Method :

Tape and Reel

Lens Style :

Rectangle with Flat Top

Operating Temperature (Min) :

-40°C

Color :

Red, Green, Blue (RGB)

Luminous Intensity :

69 mcd

Operating Temperature (Max) :

85°C

Published :

2008

Wavelength - Dominant :

630nm Red 525nm Green 465nm Blue

RoHS Status :

ROHS3 Compliant

Current - Test :

20mA Red 20mA Green 20mA Blue

Number of Functions :

1

Lens Transparency :

Clear

Viewing Angle :

120°

Wavelength - Peak :

645nm Red 515nm Green 460nm Blue
