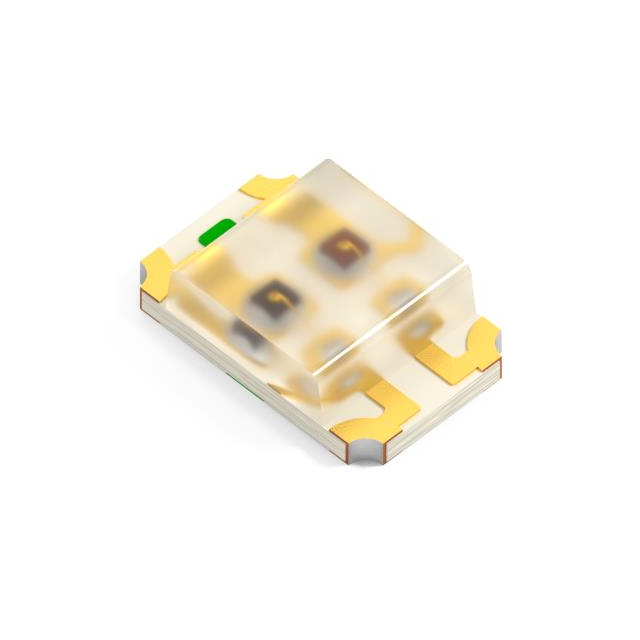

XZCBDMDK54W-4

Manufacturer :

SunLED

Product Category :

Viewing Angle :

120°

Mount :

Surface Mount

Configuration :

Independent

Wavelength - Dominant :

465nm Blue 630nm Red

Size / Dimension :

2.00mm Lx1.25mm W

Factory Lead Time :

6 Weeks

RoHS Status :

ROHS3 Compliant

Shape :

RECTANGULAR

Number of Functions :

1

Height :

450μm

Lens Size :

1.20mmx1.25mm

Lens Transparency :

Clear

Forward Current-Max :

0.03A

Lens Color :

Colorless

Luminous Intensity :

79 mcd

Voltage - Forward (Vf) (Typ) :

3.3V Blue 1.95V Red

Packing Method :

Tape and Reel

Operating Temperature (Min) :

-40°C

Terminal Pitch :

1.8mm

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Operating Temperature (Max) :

85°C

Lens Style :

Rectangle with Flat Top

Package / Case :

0805 (2012 Metric)

Mounting Type :

Surface Mount

Millicandela Rating :

79mcd Blue, 79mcd Red

Wavelength - Peak :

460nm Blue 645nm Red

Color :

Blue, Red

Current - Test :

20mA Blue 20mA Red

Packaging :

Tape and Reel (TR)

ECCN Code :

EAR99

HTS Code :

8541.40.20.00

Pbfree Code :

yes

Number of Terminations :

4

Published :

2011

Optoelectronic Device Type :

DUAL COLOR LED
