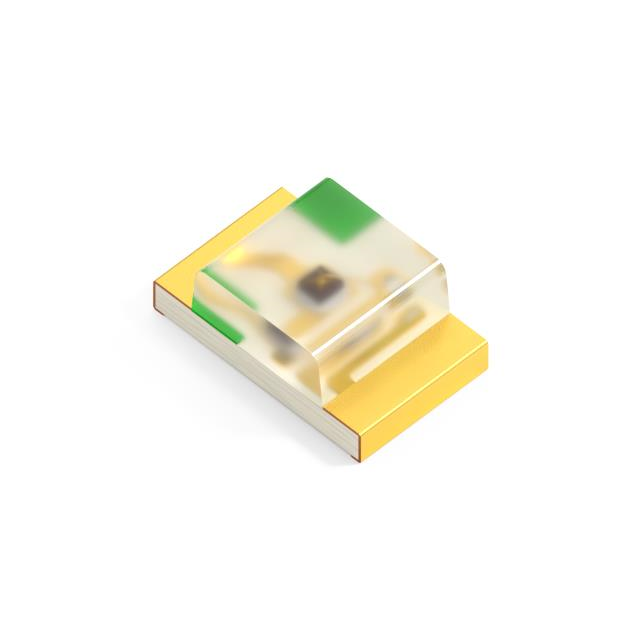

XZCBD54W-1
Or copy the link below:
- Mfr.Part #
- XZCBD54W-1
- Manufacturer
- SunLED
- Package / Case
- 0805 (2012 Metric)
- Datasheet
- Download
- Description
- LED BLUE CLEAR CHIP SMD
- Stock
- 7,135
- In Stock ：
- 7,135
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- SunLED
- Product Category :
- Operating Temperature (Min) :
- -40°C
- Packaging :
- Cut Tape (CT)
- Current - Test :
- 20mA
- Operating Temperature (Max) :
- 85°C
- Number of Functions :
- 1
- Number of Terminations :
- 2
- Packing Method :
- TR, 7 INCH
- Mounting Type :
- Surface Mount
- Factory Lead Time :
- 6 Weeks
- Voltage - Forward (Vf) (Typ) :
- 3.3V
- Lens Size :
- 1.20mmx1.25mm
- Published :
- 2014
- Size / Dimension :
- 2.00mm Lx1.25mm W
- Height :
- 750μm
- Package / Case :
- 0805 (2012 Metric)
- Wavelength - Peak :
- 460nm
- Lens Color :
- Colorless
- Color :
- Blue
- Lens Transparency :
- Clear
- Terminal Pitch :
- 2.35mm
- Mount :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Configuration :
- Standard
- Optoelectronic Device Type :
- SINGLE COLOR LED
- Viewing Angle :
- 120°
- Case Code (Imperial) :
- 0805
- Shape :
- RECTANGULAR
- Case Code (Metric) :
- 2012
- Lens Style :
- Rectangle with Flat Top
- Wavelength - Dominant :
- 465nm
- RoHS Status :
- ROHS3 Compliant
- Forward Current-Max :
- 0.03A
- Luminous Intensity :
- 98 mcd
- Datasheets
- XZCBD54W-1
XZCBD54W-1 datasheet pdf and LED Indication - Discrete product details from SunLED stock available at
