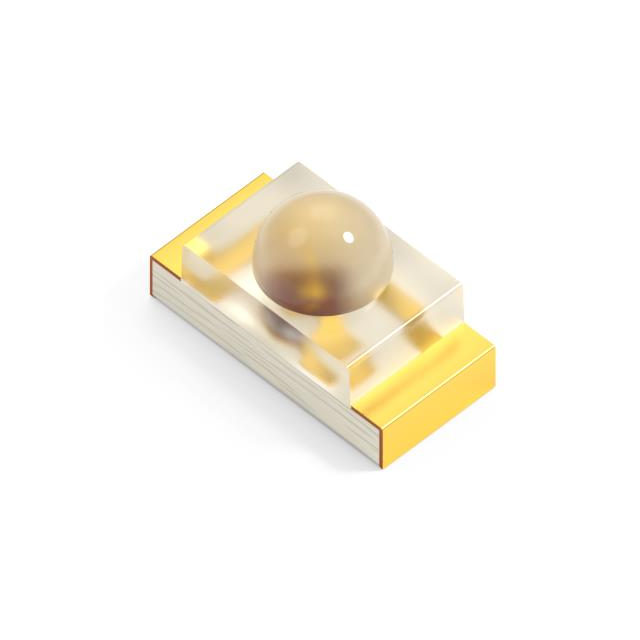

XZCBD53W-8

Manufacturer :

SunLED

Product Category :

Wavelength - Dominant :

470nm

Operating Temperature (Min) :

-40°C

Series :

PixsoLED

Number of Terminations :

2

Forward Current-Max :

0.03A

Published :

2011

Case Code (Imperial) :

0603

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

6 Weeks

Lens Size :

0.35mm Dia

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Optoelectronic Device Type :

SINGLE COLOR LED

Mounting Type :

Surface Mount

HTS Code :

8541.40.20.00

Lens Transparency :

Clear

Viewing Angle :

40°

Pbfree Code :

yes

Lens Style :

Round with Domed Top

Packing Method :

Tape and Reel

Case Code (Metric) :

1608

Color :

Blue

Height :

950μm

Mount :

Surface Mount

Voltage - Forward (Vf) (Typ) :

3.3V

Current - Test :

20mA

Number of Functions :

1

Luminous Intensity :

198 mcd

Package / Case :

0603 (1608 Metric)

Operating Temperature (Max) :

85°C

ECCN Code :

EAR99

Size / Dimension :

1.60mm Lx0.80mm W

Wavelength - Peak :

468nm

Packaging :

Cut Tape (CT)

Terminal Pitch :

1.65mm

Lens Color :

Colorless

Configuration :

Standard
