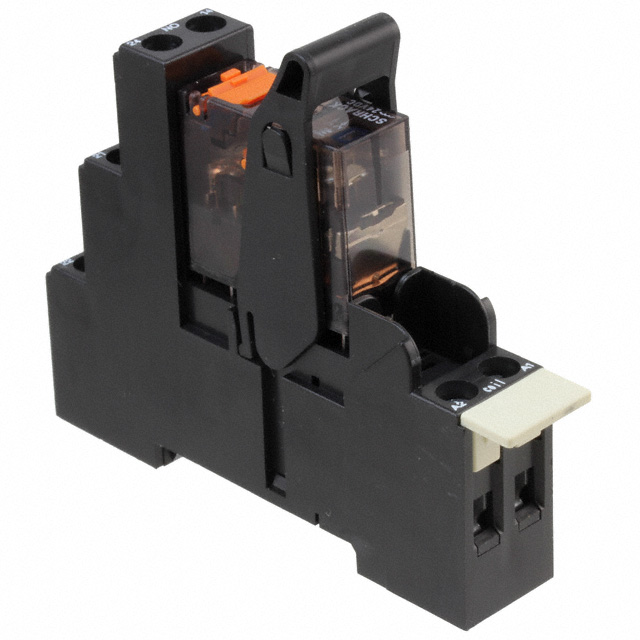

Images are for reference only.

Delivery：

Payment：

XT4S4LC4

Or copy the link below:

Mfr.Part #: XT4S4LC4

Manufacturer: TE Connectivity Potter & Brumfield Relays

Package / Case

Datasheet: Download

Description: RELAY GEN PURPOSE DPDT 8A 24V

Stock: 36,742

In Stock ：: 36,742

Request A Quote(RFQ)

* Fullname:

* Company:

* E-Mail:

Phone:

Comment:

* Quantity:

Manufacturer :: TE Connectivity Potter & Brumfield Relays
Product Category :: Power Relays, Over 2 Amps

Max Operating Temperature :: 70°C

RoHS Status :: RoHS Compliant

Depth :: 15.8mm

Weight :: 56.047007g

Min Operating Temperature :: -40°C

Coil Resistance :: 1.44kOhms

Approval Agency :: VDE, cULus

Must Operate Voltage :: 16.8VDC

Throw Configuration :: DPDT

Packaging :: Bulk

Power Rating :: 419mW

Contact Material :: Silver Nickel (AgNi)

Operating Temperature :: -40°C~70°C

Series :: XT, SCHRACK

Coil Type :: Non Latching

Moisture Sensitivity Level (MSL) :: 1 (Unlimited)

ELV :: Compliant

Voltage - Rated AC :: 400V

Contact Rating (Current) :: 8A

Coil Voltage :: 24VDC

Coil Power :: 400mW

Mount :: DIN Rail, Plug-In

Current Rating :: 8A

Published :: 2008

Release Time :: 6ms

Relay Type :: GENERAL PURPOSE

Contact Voltage Rating (AC) :: 240V

Switching Voltage :: 400VAC -Max

Length :: 77mm

Feature :: Diode, Lighted Indicator, Socket Included

Termination Style :: Screw Terminal

Termination :: Screw

Coil Voltage (DC) :: 24V

Lifecycle Status :: ACTIVE (Last Updated: 1 day ago)

Mounting Type :: DIN Rail

Must Release Voltage :: 2.4VDC

Operate Time :: 9ms

Height :: 69mm

Coil Current :: 16.7mA

Contact Form :: DPDT (2 Form C)

REACH SVHC :: Unknown

Width :: 15.8mm

Factory Lead Time :: 27 Weeks

Datasheets: XT4S4LC4

Introducing Power Relays, Over 2 Amps TE Connectivity Potter & Brumfield Relays XT4S4LC4 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature：-40°C~70°C, Mounting Type：DIN Rail, XT4S4LC4 pinout, XT4S4LC4 datasheet PDF, XT4S4LC4 amp .Beyond Power Relays, Over 2 Amps TE Connectivity Potter & Brumfield Relays XT4S4LC4 ,we also offer MY4 DC24 (S), MY4 DC12 (S), ST2-DC5V-F, Our vast inventory has you covered. Contact us now for immediate solutions.

XT4S4LC4 datasheet pdf and Power Relays, Over 2 Amps product details from TE Connectivity Potter & Brumfield Relays stock available at
