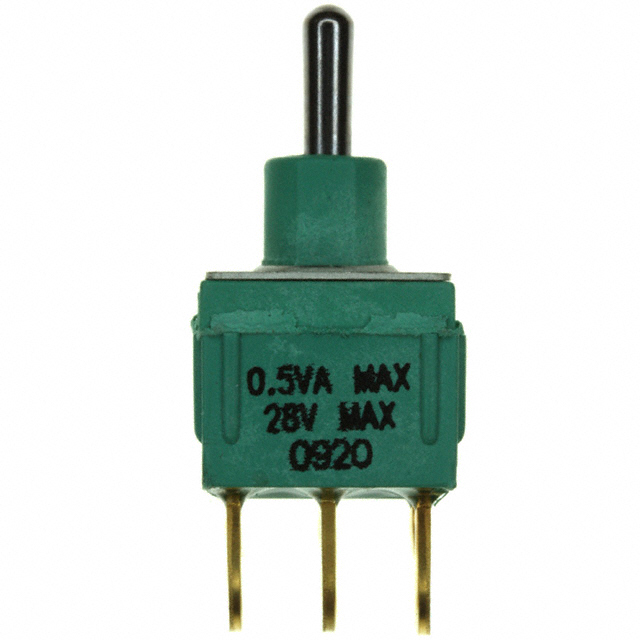

WT231M1D1AB
Or copy the link below:
- Mfr.Part #
- WT231M1D1AB
- Manufacturer
- Electroswitch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE DPDT 0.5VA 28V
- Stock
- 43,098
- In Stock ：
- 43,098
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Electroswitch
- Product Category :
- Actuator Length :
- 7.60mm
- Electrical Life :
- 60,000 Cycles
- Contact Resistance :
- 0.01mOhm
- Switch Function :
- On-Off-Mom
- Termination :
- PC Pin
- Operating Temperature :
- -30°C~85°C
- Length - Termination :
- 0.13 inch
- Reach Compliance Code :
- Unknown
- Contact (DC) Max Power Rating R Load :
- 0.5VA@28VDC
- Actuator Material :
- Brass, Chrome Plated
- Mounting Type :
- Through Hole, Right Angle
- Packaging :
- Bulk
- Body Breadth :
- 11.7348 mm
- Series :
- WT
- Lead Free :
- Lead Free
- Contact Timing :
- MAKE-BEFORE-BREAK
- Termination Style :
- PC Pin
- Contact Function :
- ON-OFF-(ON)
- RoHS Status :
- RoHS Compliant
- Dielectric Withstanding Voltage :
- 1400VAC V
- Switch Type :
- TOGGLE SWITCH
- Insulation Material :
- Thermoplastic
- Published :
- 2001
- Actuator Type :
- Standard Round
- Circuit :
- DPDT
- Bushing Length :
- 0.25 inch
- Voltage - Rated AC :
- 28V
- Voltage - Rated DC :
- 28V
- End Contact Plating :
- Gold
- Bushing Thread :
- Unthreaded
- Body Height :
- 16.51mm
- PCB Hole Count :
- 8
- Mount :
- Through Hole
- Illumination :
- Non-Illuminated
- Insulation Resistance :
- 1000000000Ohm
- Sealing :
- Epoxy
- Current Rating (Amps) :
- 0.5VA AC/DC
- Center Contact Plating :
- Gold
- Actuator Finish :
- BRIGHT CHROME
- Body Length or Diameter :
- 13.5128mm
- Datasheets
- WT231M1D1AB
