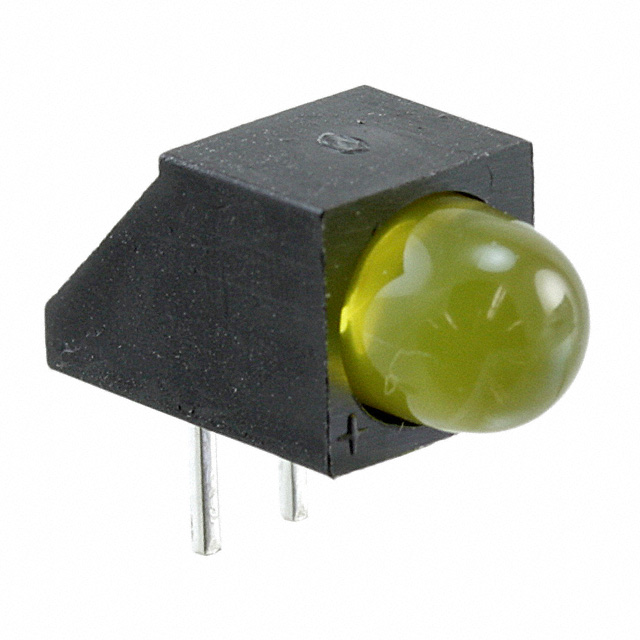

WP1503CB/YD
Or copy the link below:
- Mfr.Part #
- WP1503CB/YD
- Manufacturer
- Kingbright
- Package / Case
- Datasheet
- Download
- Description
- LED RA 5MM 590NM YLW YLW DIFF
- Stock
- 6,586
- In Stock ：
- 6,586
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Kingbright
- Product Category :
- Lens Style :
- Round with Domed Top
- Voltage - Rated :
- 2.2V
- Lens Size :
- 3.00mm Dia
- Current :
- 30mA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 12 Weeks
- Color :
- Yellow
- Viewing Angle :
- 60°
- Wavelength - Peak :
- 590nm
- Operating Temperature (Min) :
- -40°C
- Mount :
- Through Hole
- Forward Voltage :
- 2.5V
- Lens Type :
- Diffused, Tinted
- Published :
- 2011
- Terminal Pitch :
- 2.54mm
- Luminous Intensity :
- 30 mcd
- T-code :
- T-1 3/4
- Forward Current :
- 10μA
- Operating Temperature (Max) :
- 85°C
- Packaging :
- Bulk
- Overall Height :
- 6mm
- Mounting Type :
- Through Hole, Right Angle
- Number of Terminations :
- 2
- Lead Free :
- Lead Free
- Additional Feature :
- UL RECOGNIZED
- Number of Functions :
- 1
- HTS Code :
- 8541.40.20.00
- Configuration :
- Single
- ECCN Code :
- EAR99
- RoHS Status :
- ROHS3 Compliant
- Pbfree Code :
- yes
- Datasheets
- WP1503CB/YD
WP1503CB/YD datasheet pdf and LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs product details from Kingbright stock available at
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
