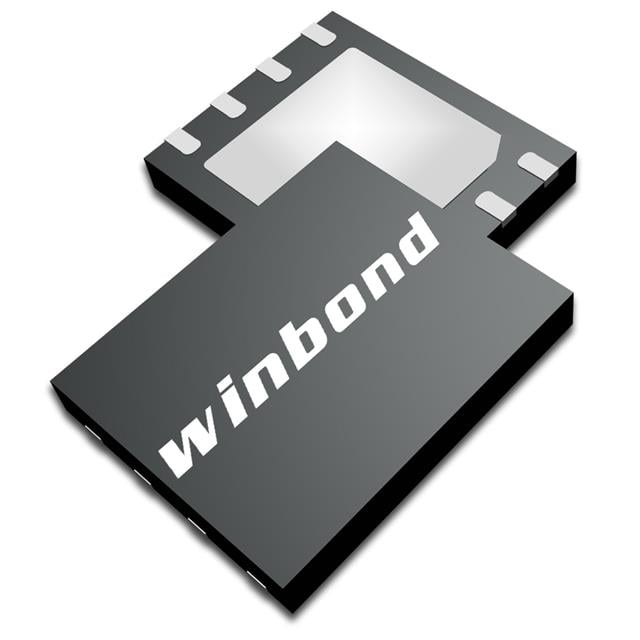

W989D6DBGX6E

Manufacturer :

Winbond Electronics Corporation

Product Category :

Memory

Terminal Form :

Ball

Speed :

133 / 166 MHz

Width :

8 mm

Series :

W989D6DB

Operating Mode :

SYNCHRONOUS

Operating Temperature :

-25°C ~ 85°C (TC)

Terminal Pitch :

0.8 mm

Product Type :

DRAM

Memory Density :

512MB

Write Cycle Time - Word, Page :

15ns

Access Mode :

FOUR BANK PAGE BURST

Organization :

32Mbit x16

Brand :

Winbond

Package Shape :

RECTANGULAR

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Type :

Low Power SDR SDRAM

Memory Organization :

32M x 16

Number of Words :

33554432 words

JESD-30 Code :

R-PBGA-B54

Product Category :

DRAM

Memory IC Type :

SYNCHRONOUS DRAM

Temperature :

-25ºC~85ºC, -40ºC~85ºC

Minimum Operating Temperature :

- 25 C

Mounting Style :

SMD/SMT

Mounting Type :

Surface Mount

Number of Functions :

1

Length :

9 mm

Additional Feature :

AUTO/SELF REFRESH

Memory Size :

512 Mbit

Supplier Device Package :

54-VFBGA (8x9)

Package :

Tray

Manufacturer :

Winbond

Memory Format :

DRAM

Supply Voltage-Max (Vsup) :

1.95 V

Data Bus Width :

16 bit

Clock Frequency :

166 MHz

Reach Compliance Code :

Compliant

Self Refresh :

yes

Number of Ports :

1

Terminal Position :

BOTTOM

Supply Voltage-Min (Vsup) :

1.7 V

Memory Interface :

LVCMOS

Technology :

SDRAM - Mobile LPSDR

Surface Mount :

yes

Product Status :

Active

Memory Width :

16

Number of Terminals :

54

Access Time :

6 ns

Seated Height-Max :

1.025 mm

Memory Type :

Volatile

Base Product Number :

W989D6

Subcategory :

Memory and Data Storage

Maximum Operating Temperature :

+ 85 C

Voltage - Supply :

1.7V ~ 1.95V

Package / Case :

VFBGA-54
