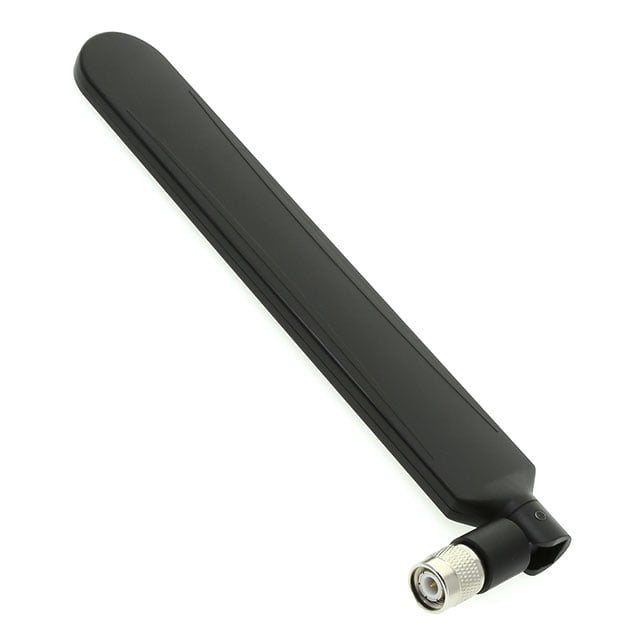

W5095

Manufacturer :

Pulse Electronics

Product Category :

RF Antennas

Width :

30.5 mm

Operating Temperature Classification :

Industrial

Subcategory :

Antennas

Antenna Type :

Blade

Rad Hardened :

No

VSWR :

2.5

Frequency Range :

698MHz ~ 960MHz, 1.4GHz ~ 2.69GHz

Maximum Operating Temperature :

+ 85 C

Product Type :

Multiband Antennas

Product :

Indoor Antennas

Polarization :

Vertical

Application :

Cellular Radio, Gateways, Routers, Set Top Boxes, Security, Metering, IoT Devices, M2M

Applications :

LTE

Termination :

TNC Male

Style :

Blade Tilt / Swivel

Packaging :

Bag

Features :

-

Ingress Protection :

IP65

Product Category :

Antennas

Impedance :

50(ohm)

Operating Temperature (Max) :

85C

Type :

Dipole

Mounting Type :

Connector Mount

Operating Temperature (Min) :

-40C

Mounting Style :

Panel Mount

Center Frequency :

750 MHz, 800 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 3500 MHz, 1575 MHz, 1602 MHz

Power Rating :

3 W

VSWR (Max) :

2.5(Typ)

Antenna Gain :

2.16DBI

Frequency (Min) :

698/1400(MHz)

Series :

-

Antenna Connector Type :

TNC Male

Package :

Bulk

Frequency (Center/Band) :

829MHz, 2.05GHz

Number of Bands :

2

Return Loss :

-

Frequency Group :

Wide Band

Cable Type :

-

Manufacturer :

Pulse

Termination Style :

Connector

Gain :

2.16DBI

IP Rating :

IP65

Minimum Operating Temperature :

- 40 C

Power - Max :

3 W

Brand :

Pulse Electronics

RoHS :

Details

RF Family/Standard :

Cellular

Product Status :

Active

Maximum Input Power :

3000(TYP)(mW)

Frequency :

960/2690(MHz)

Length :

229 mm
