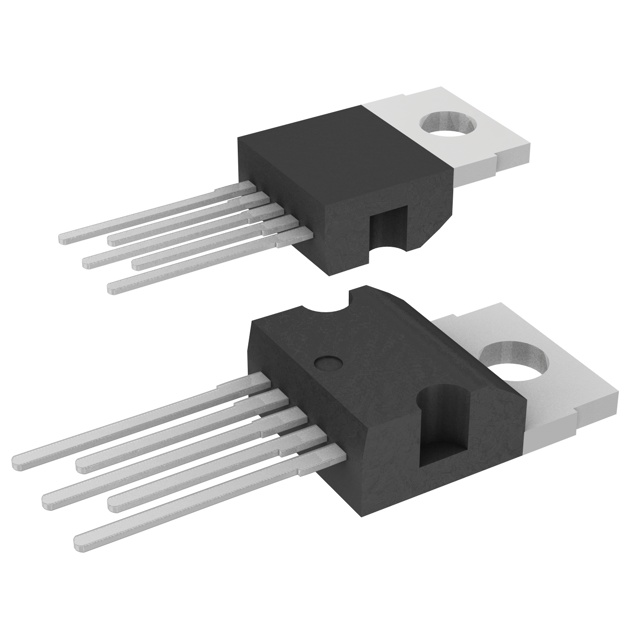

VN750(012Y)

Manufacturer :

STMicroelectronics

Product Category :

Power Distribution Switches, Load Drivers

Operating Temperature :

-40°C~150°C TJ

Input Type :

Non-Inverting

Mounting Type :

Through Hole

Packaging :

Tube

ECCN Code :

EAR99

Supply Voltage :

13V

Package / Case :

Pentawatt-5 (Straight Leads, Staggered Depth)

Number of Terminations :

5

Turn On Delay Time :

40 μs

Power Dissipation :

60W

Number of Functions :

1

Output Type :

N-Channel

Supply Voltage-Max (Vsup) :

36V

Max Power Dissipation :

60W

Series :

VIPower™

Voltage - Load :

5.5V~36V

Radiation Hardening :

No

RoHS Status :

ROHS3 Compliant

Number of Outputs :

1

Pin Count :

5

Mount :

Through Hole

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Max Supply Current :

3.5mA

Feature :

Auto Restart, Status Flag

Terminal Position :

Zig-Zag

Turn-Off Delay Time :

30 µs

Switch Type :

GENERAL PURPOSE

Voltage - Supply (Vcc/Vdd) :

Not Required

Built-in Protections :

TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

Fault Protection :

Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage

Ratio - Input:Output :

1:1

Number of Pins :

5

Max Output Current :

6A

Rds On (Typ) :

60m Ω (Max)

Resistance :

60mOhm

Output Configuration :

High Side

Output Current :

6A

Base Part Number :

VN750

Interface :

On/Off

Nominal Supply Current :

25mA

Output Peak Current Limit-Nom :

9A
