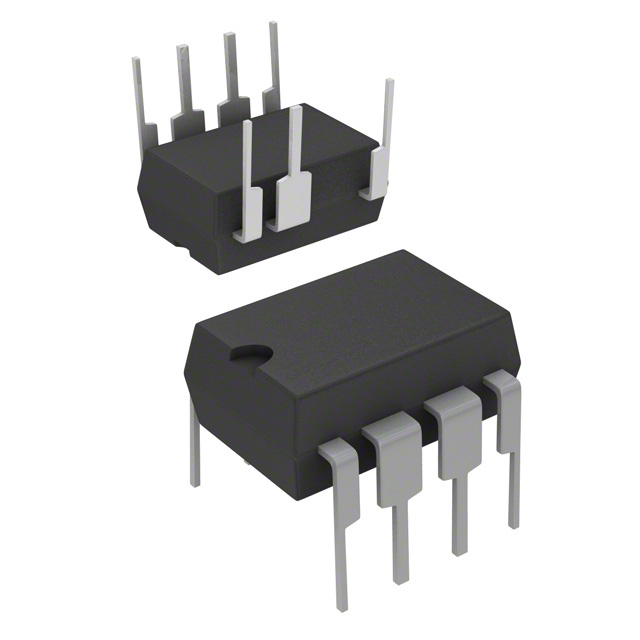

VIPER16HN
Or copy the link below:
- Mfr.Part #
- VIPER16HN
- Manufacturer
- STMicroelectronics
- Package / Case
- 8-DIP (0.300, 7.62mm), 7 Leads
- Datasheet
- Download
- Description
- IC OFFLINE SWITCH MULT TOP 7DIP
- Stock
- 22,031
- In Stock ：
- 22,031
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- STMicroelectronics
- Product Category :
- AC DC Converters, Offline Switches
- Lead Free :
- Lead Free
- Min Input Voltage :
- 85V
- Duty Cycle :
- 70%
- Max Input Voltage :
- 265V
- Max Supply Current :
- 1.5mA
- Output Current :
- 420mA
- Internal Switch(s) :
- yes
- JESD-609 Code :
- e3
- Mounting Type :
- Through Hole
- Number of Pins :
- 7
- Frequency - Switching :
- 115kHz
- Control Technique :
- PULSE WIDTH MODULATION
- Radiation Hardening :
- No
- Voltage - Start Up :
- 13V
- Max Duty Cycle :
- 80 %
- Number of Channels :
- 1
- Terminal Position :
- Dual
- Width :
- 6.35mm
- Voltage - Supply (Vcc/Vdd) :
- 11.5V~23.5V
- Output Isolation :
- Either
- Fault Protection :
- Current Limiting, Over Temperature
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Supply Current :
- 1.5mA
- Output Voltage :
- 800V
- Length :
- 9.27mm
- Base Part Number :
- VIPER16
- Factory Lead Time :
- 12 Weeks
- Nominal Input Voltage :
- 265V
- Input Voltage-Nom :
- 14V
- Package / Case :
- 8-DIP (0.300, 7.62mm), 7 Leads
- REACH SVHC :
- No SVHC
- Max Power Dissipation :
- 10W
- Control Mode :
- CURRENT-MODE
- Packaging :
- Tube
- Number of Functions :
- 1
- Terminal Finish :
- Matte Tin (Sn) - annealed
- Operating Temperature :
- -40°C~150°C TJ
- Pin Count :
- 7
- RoHS Status :
- ROHS3 Compliant
- Terminal Pitch :
- 2.54mm
- Number of Terminations :
- 7
- Lifecycle Status :
- ACTIVE (Last Updated: 7 months ago)
- Mount :
- Through Hole
- Height :
- 3.3mm
- Weight :
- 850.995985mg
- Power Rating :
- 10W
- Topology :
- Buck, Buck-Boost, Flyback
- Output Power :
- 12W
- Series :
- VIPer™ plus
- Analog IC - Other Type :
- SWITCHING REGULATOR
- Datasheets
- VIPER16HN
VIPER16HN Documents
AC DC Converters, Offline Switches STMicroelectronics VIPER16HN Overview
The STMicroelectronics VIPER16HN integrates advanced converter technology with a robust design to deliver a high-performance solution for AC/DC conversion and offline switching applications. This 7-pin DIP (Dual In-line Package) integrated circuit is specifically engineered to enhance operational efficiency and reliability. The VIPER16HN is adept at managing complex power conversion with minimized power loss, making it ideal for high-density power applications where space and power efficiency are critical. This product is a pivotal component for designers looking to optimize their power supply systems while ensuring robust performance and compliance with global energy efficiency standards.
VIPER16HN Features
The VIPER16HN IC from STMicroelectronics boasts a multitude of features designed for superior performance in power management. Key features include a built-in high-voltage startup circuit, which ensures reliable startup; a jittered switching frequency that reduces electromagnetic interference (EMI); overvoltage, overload, and thermal protection circuits that safeguard the device and the system under harsh conditions; and an error amplifier that enhances feedback loop performance. These capabilities make the VIPER16HN an exceptionally reliable choice for demanding applications.
VIPER16HN Applications
