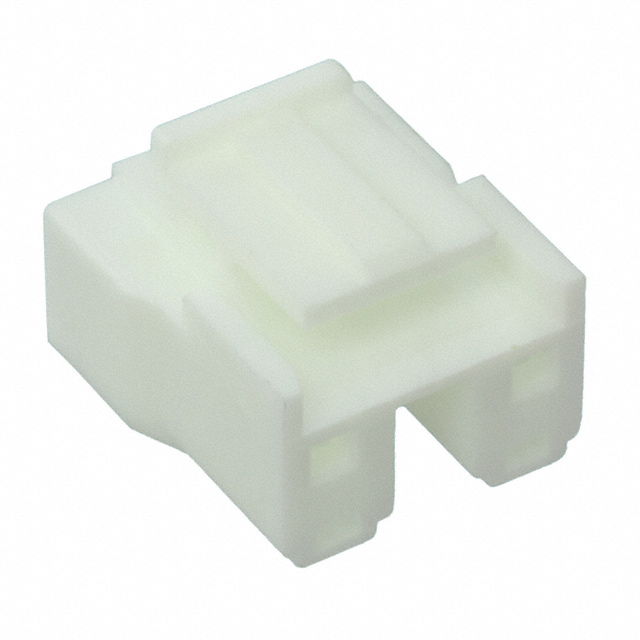

VAR-2
Or copy the link below:
- Mfr.Part #
- VAR-2
- Manufacturer
- JST
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 2POS 7.92MM
- Stock
- 75,821
- In Stock ：
- 75,821
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- JST
- Product Category :
- Rectangular Connector Housings
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- NOT SPECIFIED
- Wire Gauge (Min) :
- 18 AWG
- MIL Conformance :
- No
- DIN Conformance :
- No
- Contact Finish - Mating :
- NOT SPECIFIED
- Mounting Type :
- Free Hanging (In-Line)
- Wire Gauge (Max) :
- 20 AWG
- Fastening Type :
- Latch Holder
- Factory Lead Time :
- 12 Weeks
- Pitch :
- 0.312 7.92mm
- Filter Feature :
- No
- Contact Type :
- Female Socket
- HTS Code :
- 8536.69.40.30
- Lead Free :
- Lead Free
- Empty Shell :
- No
- Total Number of Contacts :
- 2
- IEC Conformance :
- No
- Max Operating Temperature :
- 85°C
- Option :
- GENERAL PURPOSE
- Shell Material :
- PA6
- Min Operating Temperature :
- -25°C
- Packaging :
- Bulk
- Mount :
- Free Hanging
- Number of Rows :
- 1
- Housing Material :
- Polyamide
- Note :
- Contacts Not Included
- UL Flammability Code :
- 94V-0
- Series :
- VA
- Max Voltage Rating (AC) :
- 250V
- Mixed Contacts :
- No
- ECCN Code :
- EAR99
- Connector Type :
- Receptacle
- Contact Termination :
- Crimp
- RoHS Status :
- RoHS Compliant
- Reach Compliance Code :
- Unknown
- Orientation :
- Straight
- Published :
- 2010
- Max Current Rating :
- 7A
- Depth :
- 14.3mm
- Number of Positions :
- 2
- Length :
- 12.92mm
- Color :
- Natural
- Pbfree Code :
- yes
- Housing Color :
- White
- Datasheets
- VAR-2
VAR-2 Documents
1 Rows Receptacle Bulk Natural 2 Positions Free Hanging (In-Line) Female Socket Crimp VA Polyamide
VAR-2 Overview
This product is packaged in a Receptacle carton.Free Hanging (In-Line) is the mounting type for the device.The product is packaged in a Bulk case.It's part of the VA Series.Mounting of the part is based on Free Hanging.
VAR-2 Features
VA series
VAR-2 Applications
There are a lot of JST Sales America Inc.
VAR-2 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
