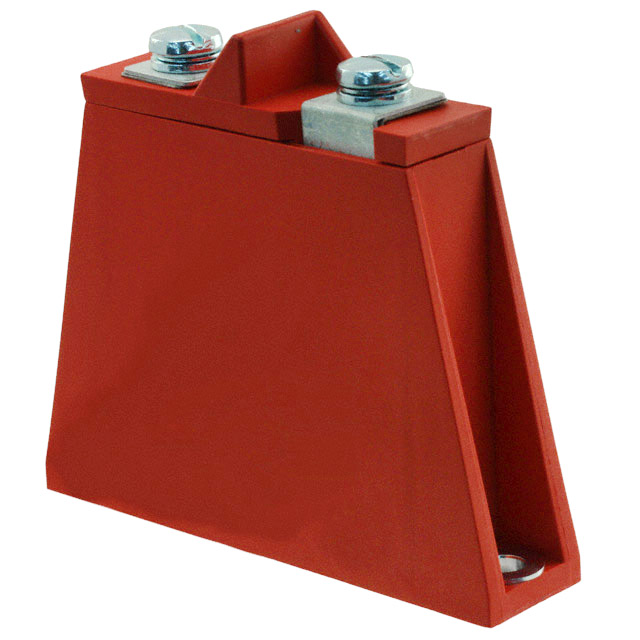

V421BA60

Manufacturer :

Harris Corporation

Product Category :

Terminal Placement :

Radial

Max Surge Current :

70kA

Clamping Voltage :

1.06kV

Mounting Type :

Chassis Mount

Resistor Type :

VARISTOR

Varistor Voltage (Typ) :

680V

Varistor Voltage :

680V

Number of Circuits :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

Lead Pitch :

40mm

Terminal Shape :

Binding Post

Max Voltage Rating (AC) :

420V

Length :

100mm

REACH SVHC :

No SVHC

Lead Free :

Contains Lead

Reach Compliance Code :

Unknown

Voltage - Rated DC :

560V

Energy :

1500J

Rated Power Dissipation (P) :

2.5W

Varistor Voltage (Max) :

748V

Packaging :

Bulk

Factory Lead Time :

15 Weeks

JESD-609 Code :

e3

Terminal Finish :

Matte Tin (Sn)

HTS Code :

8533.40.40.00

RoHS Status :

ROHS3 Compliant

Diameter :

60mm

Number of Terminations :

2

Series :

BA

Mount :

Bolt, Chassis Mount, Surface Mount

Depth :

23.5mm

Varistor Voltage (Min) :

612V

Clamping Current :

200A

Voltage - Rated AC :

420V

Capacitance :

6nF

Capacitance @ Frequency :

6000pF @ 1MHz

Lead/Base Style :

Screw

Operating Temperature :

-55°C~85°C TA

Published :

2005

Max Voltage Rating (DC) :

560V

Pbfree Code :

yes

Package / Case :

Encased Disc
