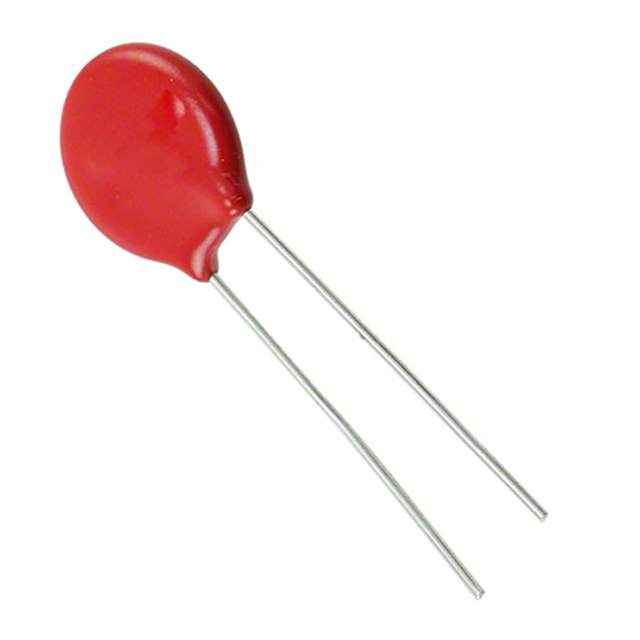

V100ZA15P
Or copy the link below:
- Mfr.Part #
- V100ZA15P
- Manufacturer
- Littelfuse
- Package / Case
- Disc 14mm
- Datasheet
- Download
- Description
- VARISTOR 100V 4.5KA DISC 14MM
- Stock
- 1,204
- In Stock ：
- 1,204
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Littelfuse
- Product Category :
- Height :
- 20mm
- Width :
- 5.6mm
- Capacitance @ Frequency :
- 2900pF @ 1MHz
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Lead Length :
- 25.4mm
- Varistor Voltage :
- 110V
- Max Output Current :
- 4.5kA
- Energy :
- 20J
- ESD Protection :
- No
- HTS Code :
- 8533.40.40.00
- Rated Power Dissipation (P) :
- 0.6W
- Series :
- ZA
- Terminal Finish :
- Tin (Sn)
- Varistor Voltage (Min) :
- 90V
- Clamping Current :
- 50A
- Voltage - Rated DC :
- 81V
- Operating Temperature :
- -55°C~85°C TA
- Thickness :
- 5.6mm
- Resistor Type :
- VARISTOR
- Capacitance :
- 2nF
- Lead/Base Style :
- Radial
- Lead Free :
- Lead Free
- Max Voltage Rating (DC) :
- 81V
- Mounting Type :
- Through Hole
- Depth :
- 5.6mm
- Diameter :
- 14mm
- Published :
- 2005
- ECCN Code :
- EAR99
- Package / Case :
- Disc 14mm
- Number of Terminations :
- 2
- RoHS Status :
- ROHS3 Compliant
- Clamping Voltage :
- 175V
- Voltage - Rated AC :
- 60V
- REACH SVHC :
- Unknown
- Factory Lead Time :
- 14 Weeks
- Max Voltage Rating (AC) :
- 60V
- Current Rating :
- 50A
- Max Surge Current :
- 4.5kA
- Number of Circuits :
- 1
- Temperature Coefficient :
- 0.05 ppm/°C
- Mount :
- Radial, Through Hole
- Lead Pitch :
- 8.5mm
- Terminal Shape :
- Wire
- Pbfree Code :
- yes
- JESD-609 Code :
- e3
- Varistor Voltage (Typ) :
- 100V
- Datasheets
- V100ZA15P
V100ZA15P Documents
V100ZA15P datasheet pdf and TVS - Varistors, MOVs product details from Littelfuse Inc. stock available at Xinshop
