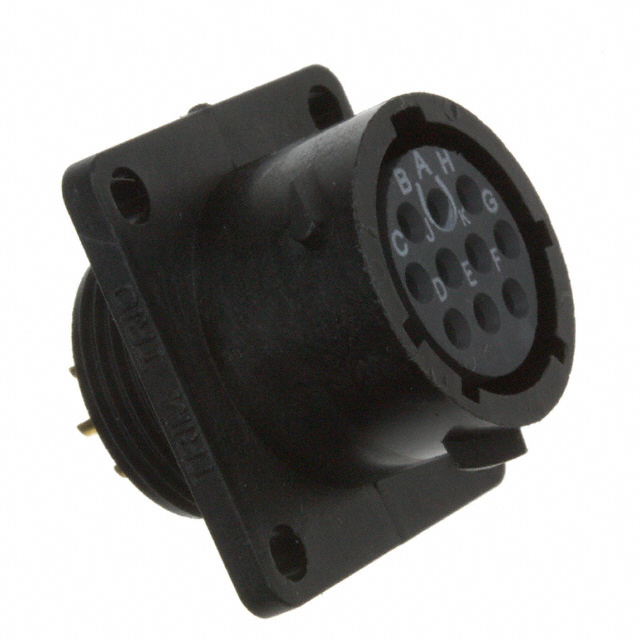

UTS012E10S

Manufacturer :

Souriau-Sunbank by Eaton

Product Category :

Circular Connector Assemblies

Mounting Feature :

Flange

Contact Finish - Mating :

Gold

Insert Material :

Polychloroprene

Body Material :

Thermoplastic

Total Number of Contacts :

10

Factory Lead Time :

8 Weeks

Ingress Protection :

IP68/69K - Dust Tight, Water Resistant, Waterproof

Moisture Sensitivity Level (MSL) :

Not Applicable

Filter Feature :

No

Orientation :

N (Normal)

Gender :

Receptacle

RoHS Status :

ROHS3 Compliant

Voltage - Rated :

250V

Contact Finish Thickness - Mating :

16.0μin 0.41μm

Series :

Trim Trio® UTS Hi Seal

REACH SVHC :

No SVHC

Feature :

UV Resistant

Color :

Black

Connector Type :

Receptacle, Female Sockets

Shell Size - Insert :

12-10

Contact Gender :

FEMALE

Military Standard :

MIL-DTL-26482

Shielding :

Unshielded

MIL Conformance :

yes

Mount :

Flanges, Panel

Coupling Type :

Threaded

Number of Positions :

10

Current Rating :

4.5A

Fastening Type :

Bayonet Lock

Packaging :

Bulk

Shell Material :

Polybutylene Terephthalate (PBT)

Backshell Type :

Solid

DIN Conformance :

No

IEC Conformance :

No

Material Flammability Rating :

UL94 V-0

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Operating Temperature :

-40°C~105°C

Applications :

Energy, Instrumentation, Lighting, Telecommunications

Ratings :

Dust Tight, IP68, Waterproof

Contact Material :

Brass

Termination :

Solder Cup

Pbfree Code :

yes

Empty Shell :

No

Mounting Type :

Panel Mount

Mixed Contacts :

No
