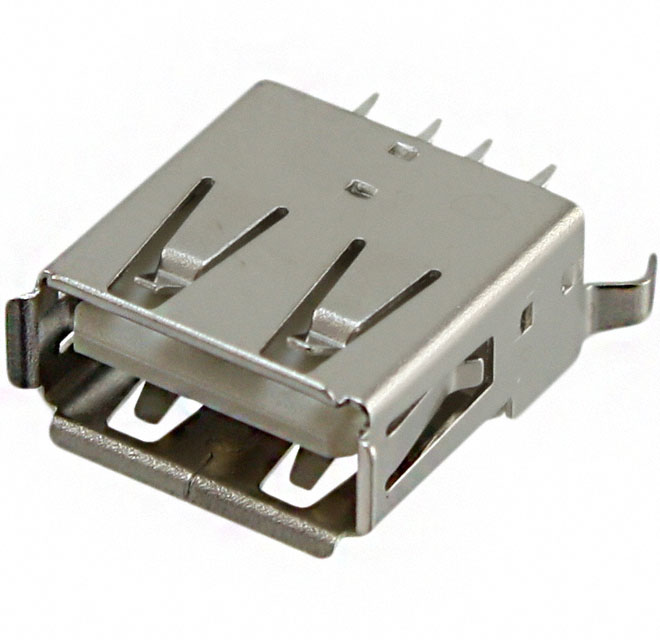

USB-A1VSW6
Or copy the link below:
- Mfr.Part #
- USB-A1VSW6
- Manufacturer
- On-Shore Technology, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT TYPEA 4POS VERT
- Stock
- 6,226
- In Stock ：
- 6,226
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- On-Shore Technology, Inc.
- Product Category :
- USB, DVI, HDMI Connector Assemblies
- DIN Conformance :
- No
- Contact Finish :
- Gold
- Empty Shell :
- No
- Mounting Type :
- Through Hole
- Shell Finish :
- Nickel
- Number Of PCB Rows :
- 1
- Reliability :
- COMMERCIAL
- Filter Feature :
- No
- Packaging :
- Tray
- Terminal Pitch :
- 2.0066mm
- Reference Standard :
- UL
- Number of Contacts :
- 4
- Mixed Contacts :
- No
- Number of Ports :
- 1
- Shielding :
- Unshielded
- Number of Conductors :
- ONE
- Voltage - Rated :
- 30VAC
- MIL Conformance :
- No
- Operating Temperature :
- -55°C~85°C
- Factory Lead Time :
- 12 Weeks
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Feature :
- Vertical
- PCB Contact Pattern :
- RECTANGULAR
- Current Rating (Amps) :
- 1.5A
- Body Breadth :
- 0.272 inch
- Material Flammability Rating :
- UL94 V-0
- Contact Style :
- USB, SER A FLAT
- Contact Material :
- Phosphor Bronze
- Contact Resistance :
- 30mOhm
- Plating Thickness :
- FLASH inch
- IEC Conformance :
- No
- Connector Type :
- USB-A (USB TYPE-A)
- Termination :
- Solder
- Feature :
- Board Lock
- Gender :
- Receptacle
- Option :
- GENERAL PURPOSE
- Shell/Shielding Material :
- COPPER ALLOY
- Insulation Color :
- White
- Mount :
- Through Hole, Vertical
- Body Length or Diameter :
- 0.563 inch
- Polarization Key :
- POLARIZED HOUSING
- Insulation Material :
- GLASS FILLED POLYESTER
- Dielectric Withstanding Voltage :
- 500VAC V
- Datasheets
