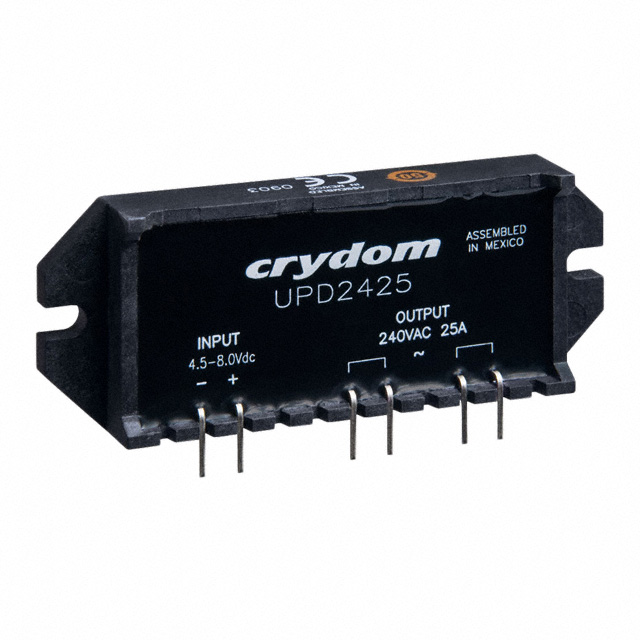

UPD2425
Or copy the link below:
- Mfr.Part #
- UPD2425
- Manufacturer
- Sensata Technologies – Crydom
- Package / Case
- 6-SIP
- Datasheet
- Download
- Description
- SSR RELAY SPST-NO 25A 24-280V
- Stock
- 32,692
- In Stock ：
- 32,692
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sensata Technologies – Crydom
- Product Category :
- Solid State Relays
- Termination :
- PC Pin
- Max Surge Current :
- 120A
- Voltage - Load :
- 24V~280V
- Height :
- 28.575mm
- Length :
- 78.3844mm
- Throw Configuration :
- DPST, SPST
- Factory Lead Time :
- 6 Weeks
- RMS Current (Irms) :
- 25A
- Isolation Voltage :
- 2.5kV
- REACH SVHC :
- No SVHC
- Min Operating Temperature :
- -40°C
- RoHS Status :
- RoHS Compliant
- Output Type :
- AC, Zero Cross
- Input Current :
- 10mA
- Termination Style :
- PC Pin
- Max Operating Temperature :
- 80°C
- Voltage - Rated AC :
- 240V
- Package / Case :
- 6-SIP
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Voltage Rating (DC) :
- 32V
- Series :
- UPD24
- Radiation Hardening :
- No
- Current Rating :
- 25A
- Depth :
- 12.7mm
- Packaging :
- Bulk
- Load Current :
- 25A
- Published :
- 2010
- Mounting Type :
- Through Hole
- Max Output Voltage :
- 280V
- Supplier Device Package :
- 6-SIP
- Circuit :
- SPST-NO (1 Form A)
- Voltage - Input :
- 3V~32VDC
- Relay Type :
- Relay
- Lead Free :
- Lead Free
- Mount :
- PCB, Through Hole
- Number of Pins :
- 6
- Datasheets
- UPD2425
