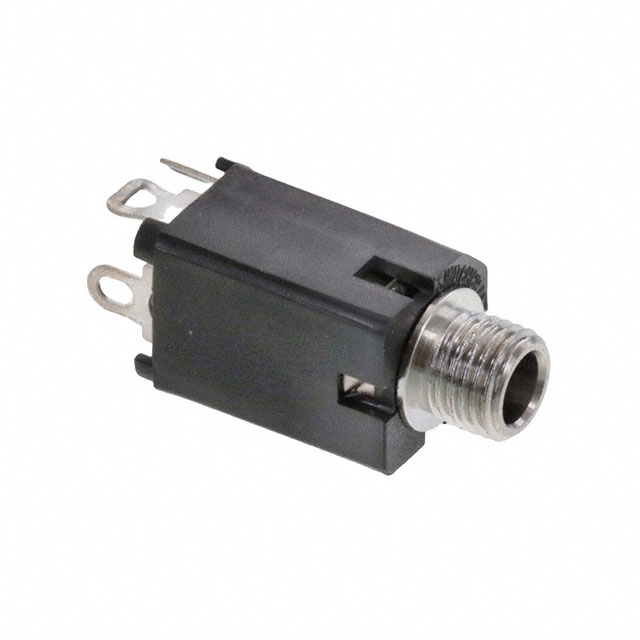

UJ4B

Manufacturer :

Switchcraft / Conxall

Product Category :

Audio Connectors

Industry Recognized Mating Diameter :

4.39mm (0.173)

RoHS Status :

ROHS3 Compliant

Thread Size :

9/32-32

Mixed Contacts :

No

MIL Conformance :

No

Option :

GENERAL PURPOSE

Filter Feature :

No

Body Color :

Silver, Black

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Material :

Brass; Copper Alloy

Connector Type :

Phone Jack

Shielding :

Unshielded

Moisture Sensitivity Level (MSL) :

Not Applicable

Mounting Type :

Panel Mount

IEC Conformance :

No

Number of Ports :

1

Lead Free :

Lead Free

Depth :

11.9mm

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Termination :

Solder Eyelet(s)

Feature :

Mounting Hardware, Thread Lock

Length :

27.78mm

Number of Positions/Contacts :

3 Conductors, 5 Contacts

Housing Material :

Thermoplastic

ECCN Code :

EAR99

Total Number of Contacts :

3

Body Material :

COPPER ALLOY

Series :

UNIJAX®

DIN Conformance :

No

Orientation :

Straight

Shell Material :

POLYETHYLENE

Color :

Black

JESD-609 Code :

e4

Signal Lines :

Stereo (3 Conductor, TRS)

Contact Plating :

Silver

Empty Shell :

yes

Actual Diameter :

0.177 (4.48mm)

Packaging :

Bulk

Number of Terminations :

3

Internal Switch(s) :

Two Switches

Gender :

FEMALE

Published :

2005

Mount :

Chassis Mount, PCB, Panel

Factory Lead Time :

8 Weeks
