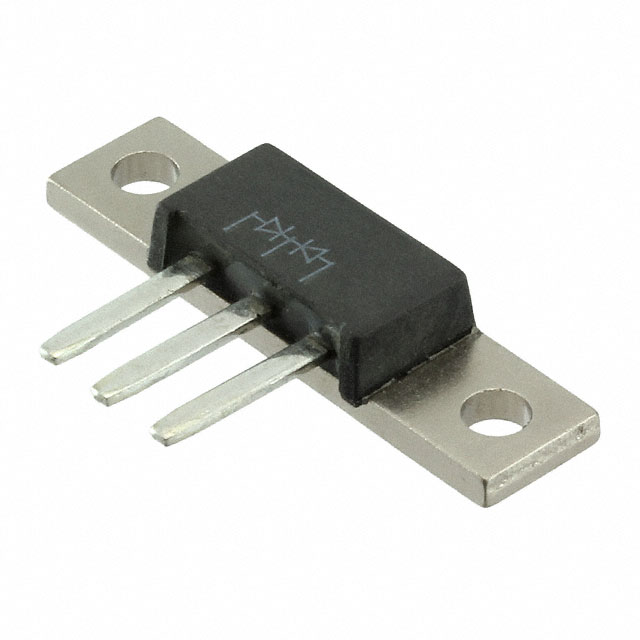

UFT7150

Manufacturer :

Microsemi

Product Category :

Diodes - Rectifiers - Arrays

Application :

ULTRA FAST RECOVERY

Peak Reverse Current :

25μA

Mounting Type :

Screw Mount

Forward Current :

35A

Max Operating Temperature :

175°C

Min Operating Temperature :

-55°C

Number of Pins :

4

Published :

2009

JESD-30 Code :

R-PSFM-T3

Voltage - Forward (Vf) (Max) @ If :

1.2V @ 35A

RoHS Status :

RoHS Compliant

Number of Elements :

2

Reverse Recovery Time :

60 ns

Radiation Hardening :

No

Peak Non-Repetitive Surge Current :

600A

Diode Configuration :

1 Pair Common Cathode

Mount :

Screw, Surface Mount

Average Rectified Current :

35A

Element Configuration :

Common Cathode

Packaging :

Bulk

Diode Type :

Standard

Terminal Position :

Single

Number of Terminations :

3

Forward Voltage :

1.2V

Pbfree Code :

No

ECCN Code :

EAR99

Current - Reverse Leakage @ Vr :

25μA @ 500V

Package / Case :

Module

Max Repetitive Reverse Voltage (Vrrm) :

500V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Form :

THROUGH-HOLE

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Pin Count :

3

Number of Phases :

1

Diode Element Material :

SILICON

Max Reverse Voltage (DC) :

500V
