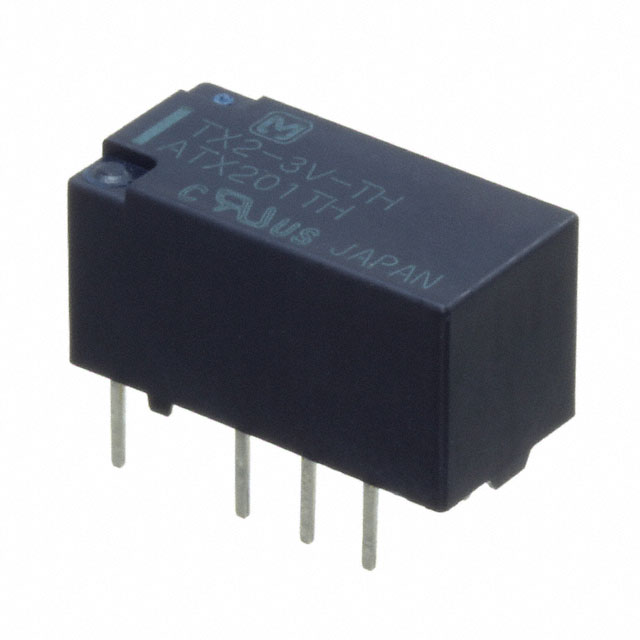

TX2-3V-TH
Or copy the link below:
- Mfr.Part #
- TX2-3V-TH
- Manufacturer
- Panasonic
- Package / Case
- DIP
- Datasheet
- Download
- Description
- RELAY GENERAL PURPOSE DPDT 2A 3V
- Stock
- 21
- In Stock ：
- 21
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Panasonic
- Product Category :
- Signal Relays, Up to 2 Amps
- Operate Time :
- 4ms
- Length :
- 15mm
- Published :
- 2000
- Reference Standard :
- BSI; CSA; UL
- Package / Case :
- DIP
- Sealing :
- WATER PROOF
- Packaging :
- Tube
- Mount :
- Through Hole
- Power Consumption :
- 140mW
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination Style :
- PC Pin
- Mounting Type :
- Through Hole
- Depth :
- 7.4mm
- Max Current Rating :
- 7.5A
- Termination :
- Solder
- RoHS Status :
- RoHS Compliant
- Contact (AC) Max Rating R Load :
- 7.5A@250VAC
- Contact Material :
- Silver (Ag), Gold (Au)
- Max Voltage Rating (DC) :
- 220V
- Must Release Voltage :
- 0.3VDC
- Switching Voltage :
- 250VAC 220VDC -Max
- Coil/Input Supply Type :
- DC
- Release Time :
- 4 ms
- Series :
- TX-TH
- Seal Rating :
- Sealed - Fully
- Max Voltage Rating (AC) :
- 250V
- Relay Type :
- GENERAL PURPOSE
- Contact (DC) Max Rating R Load :
- 7.5A@220VDC
- Number of Pins :
- 8
- Voltage - Rated AC :
- 250V
- Relay Action :
- Momentary
- Coil Voltage :
- 3VDC
- Must Operate Voltage :
- 2.25VDC
- Operating Temperature :
- -40°C~85°C
- Coil Type :
- Non Latching
- Coil Resistance :
- 64.3Ohm
- Coil Current :
- 46.7mA
- ECCN Code :
- EAR99
- Contact Form :
- DPDT (2 Form C)
- Throw Configuration :
- DPDT
- Electrical Life :
- 100000 Cycle(s)
- Pbfree Code :
- yes
- Contact/Output Supply Type :
- AC/DC
- Coil Voltage (DC) :
- 3V
- Factory Lead Time :
- 18 Weeks
- Contact Rating (Current) :
- 2A
- Datasheets
- TX2-3V-TH
TX2-3V-TH Documents
TX2-3V-TH datasheet pdf and Signal Relays, Up to 2 Amps product details from Panasonic Electric Works stock available at
