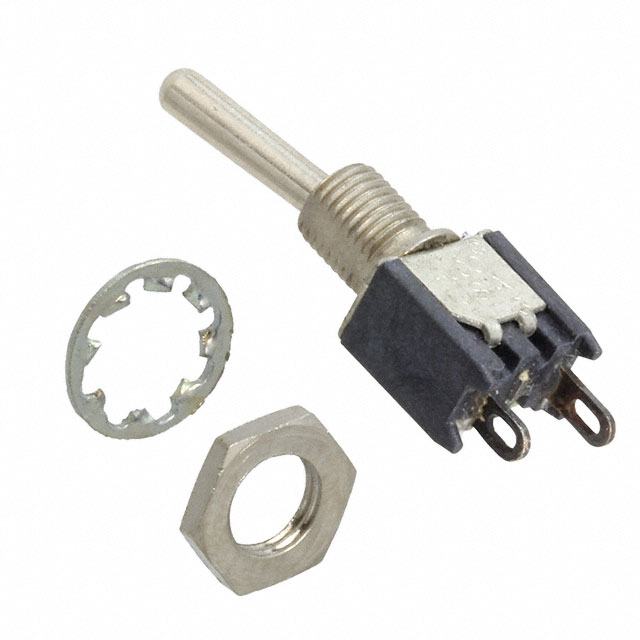

TT13A3T
Or copy the link below:
- Mfr.Part #
- TT13A3T
- Manufacturer
- TE Connectivity ALCOSWITCH Switches
- Package / Case
- 125
- Datasheet
- Download
- Description
- SWITCH TOGGLE SPST 3A 125V
- Stock
- 26,504
- In Stock ：
- 26,504
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity ALCOSWITCH Switches
- Product Category :
- Body Material :
- Thermoplastic
- Operating Temperature :
- -30°C~85°C
- Published :
- 2004
- Series :
- TT
- Illumination Type :
- Illuminated, Non-Illuminated
- Contact Material :
- Gold
- ECCN Code :
- EAR99
- Package / Case :
- 125
- Orientation :
- Straight
- Voltage - Rated AC :
- 125V
- Current Rating :
- 3A
- Illumination :
- Non-Illuminated
- Contact Current Rating :
- 3A
- RoHS Status :
- Non-RoHS Compliant
- Termination :
- Lug
- Number of Positions :
- 2
- Packaging :
- Bulk
- Type :
- Switch
- Switch Function :
- On-Off
- Bushing Thread :
- 10-48
- Approval Agency :
- UL
- Max Voltage Rating (AC) :
- 125V
- Mount :
- Panel
- Insulation Resistance :
- 1GOhm
- Max Voltage Rating (DC) :
- 28V
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Flammability Rating :
- UL94 V-0
- Contact Plating :
- Silver
- Electrical Life :
- 20,000 Cycles
- Factory Lead Time :
- 28 Weeks
- Actuator Type :
- Standard Round
- Panel Cutout Dimensions :
- Circular - 4.83mm Dia
- Circuit :
- SPST
- ELV :
- Non-Compliant
- Actuator Length :
- 9.68mm
- Number of Poles :
- 1
- Actuator Material :
- Brass, Nickel Plated
- Contact Resistance :
- 20mOhm
- Termination Style :
- Solder Lug
- Lead Free :
- Contains Lead
- Current Rating (Amps) :
- 3A AC/DC
- Feature :
- Epoxy Sealed Terminals
- Voltage - Rated DC :
- 28V
- Mounting Type :
- Panel Mount
- Datasheets
- TT13A3T
