TST02RB02T

Share

Or copy the link below:

Mfr.Part #
TST02RB02T
Manufacturer
ITT Cannon
Package / Case
Datasheet
Download
Description
CONN RCPT 2POS 0.2 TIN PCB
Stock
41,776
In Stock :
41,776

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
ITT Cannon
Product Category :
Headers, Receptacles, Female Sockets
Moisture Sensitivity Level (MSL) :
Not Applicable
Contact Shape :
Circular
Insulation Resistance :
5GOhm
Series :
Trident Rectangular
Mated Stacking Heights :
-
Pitch - Mating :
0.200 5.08mm
RoHS :
Details
Fastening Type :
Latch Holder
Max Voltage Rating (AC) :
250V
Number of Positions Loaded :
All
Pbfree Code :
yes
REACH SVHC :
No SVHC
Product Status :
Active
Contact Length - Post :
0.224 5.70mm
Contact Type :
Female Socket
Subcategory :
Automotive Connectors
Package :
Bulk
Packaging :
Bulk
Gender :
Receptacle
Voltage Rating (DC) :
250 V
Feature :
Mounting Flange
Voltage Rating :
-
Contact Material :
NOT SPECIFIED
Voltage - Rated DC :
250V
Insulation Height :
0.531 13.50mm
Operating Temperature :
-40°C~105°C
Min Operating Temperature :
-40 °C
Insulation Material :
Polyamide (PA), Nylon
Material Flammability Rating :
UL94 V-0
Style :
Board to Board or Cable
Max Current Rating :
13A
Current Rating (Amps) :
-
Color :
Black
Contact Finish - Post :
-
Base Product Number :
TST02
Termination :
Solder
Contact Finish - Mating :
Tin
Mount :
Through Hole
RoHS Status :
RoHS Compliant
Mounting Type :
Through Hole
Orientation :
Straight
Manufacturer :
ITT Cannon
Connector Shell Size :
-
Number of Positions :
2
Contact Gender :
Socket
Connector Type :
Receptacle
Factory Lead Time :
15 Weeks
Contact Finish Thickness - Post :
-
Published :
2001
Features :
Mounting Flange
Number of Contacts :
2
Row Spacing - Mating :
-
Pitch :
5.08 mm
ECCN Code :
EAR99
Housing Material :
Nylon
Applications :
Automotive, General Purpose
Product Type :
Automotive Connectors
Contact Finish Thickness - Mating :
-
Contact Plating :
Tin Plated Contacts
Number of Rows :
1
Insulation Color :
Black
Product Category :
Automotive Connectors
Length :
25mm
Ingress Protection :
-
Brand :
ITT Cannon
Max Operating Temperature :
105 °C
HTS Code :
8536.69.40.30
Introducing Headers, Receptacles, Female Sockets ITT Cannon TST02RB02T from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-40°C~105°C, Mounting Type:Through Hole, TST02RB02T pinout, TST02RB02T datasheet PDF, TST02RB02T amp .Beyond Headers, Receptacles, Female Sockets ITT Cannon TST02RB02T ,we also offer 5031590300, PPPC022LFBN-RC, PPTC071LFBN-RC, Our vast inventory has you covered. Contact us now for immediate solutions.

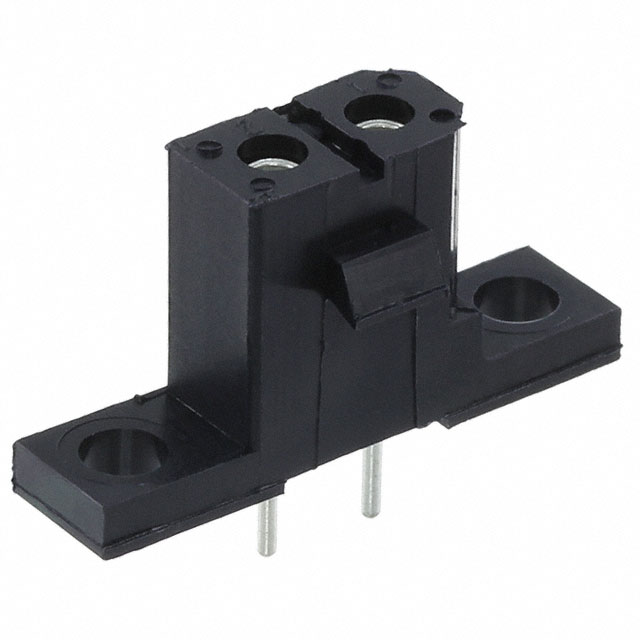

ITT Cannon TST02RB02T


1 Rows Receptacle Solder NOT SPECIFIED Through Hole Bulk Tin Polyamide (PA), Nylon 2 Positions Female Socket

TST02RB02T Overview


It comes in Receptacle packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Trident Rectangular Series of products.It's best to use it when the temperature is below 105 °C.This device must operate at a minimum temperature of -40 °C.Automotive, General Purpose is a possible application for the device.Its Mounting Flange feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -40°C~105°C Operating Temperature.

TST02RB02T Features


Trident Rectangular series


TST02RB02T Applications


There are a lot of ITT Cannon, LLC
TST02RB02T Rectangular Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
