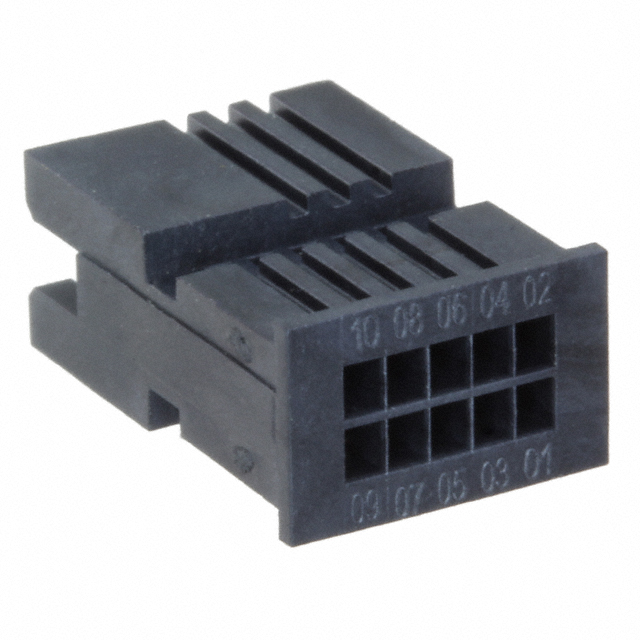

TSDF-05-D-S
Or copy the link below:
- Mfr.Part #
- TSDF-05-D-S
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HSG 10POS 1.27MM
- Stock
- 894
- In Stock ：
- 894
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Rectangular Connector Housings
- HTS Code :
- 8536.69.40.40
- Contact Type :
- Male Pin
- Gender :
- Male
- ECCN Code :
- EAR99
- Packaging :
- Bulk
- Connector Type :
- BOARD CONNECTOR
- Filter Feature :
- No
- Contact Finish - Mating :
- GOLD OVER NICKEL (50)
- Contact Resistance :
- 15mOhm
- Pitch :
- 0.050 1.27mm
- Contact Termination :
- Crimp
- Mixed Contacts :
- No
- Color :
- Black
- Contact Design :
- PREASSEM CONN
- Reliability :
- COMMERCIAL
- Row Spacing :
- 0.050 (1.27mm)
- Series :
- Tiger Eye™ TSDF
- Number of Positions :
- 10
- Radiation Hardening :
- No
- Note :
- Contacts Not Included
- Orientation :
- Straight
- IEC Conformance :
- No
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Contact Material :
- BERYLLIUM COPPER
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Polarization Key :
- POLARIZED HOUSING
- Operating Temperature (Min) :
- -55°C
- MIL Conformance :
- No
- Option :
- GENERAL PURPOSE
- Body Length or Diameter :
- 0.35 inch
- Reference Standard :
- UL
- Termination Type :
- Wire
- Number of Rows :
- 2
- Mounting Option 1 :
- LOCKING
- DIN Conformance :
- No
- Additional Feature :
- TIGER EYE CONTACT
- Mounting Type :
- Free Hanging (In-Line)
- Total Number of Contacts :
- 10
- Published :
- 2011
- Factory Lead Time :
- 3 Weeks
- RoHS Status :
- ROHS3 Compliant
- JESD-609 Code :
- e4
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Resistance :
- 5000000000Ohm
- Datasheets
- TSDF-05-D-S
TSDF-05-D-S Documents
2 Rows BOARD CONNECTOR Bulk Black 10 Positions Free Hanging (In-Line) Male Pin Crimp Tiger Eye™ TSDF
TSDF-05-D-S Overview
This product is packaged in a BOARD CONNECTOR cartonThis device's mounting type is Free Hanging (In-Line).It's packaged in a Bulk case.Tiger Eye™ TSDF Series product.There are also features like TIGER EYE CONTACT, just to name a few.
TSDF-05-D-S Features
Tiger Eye™ TSDF series
TSDF-05-D-S Applications
There are a lot of Samtec Inc.
TSDF-05-D-S Rectangular Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
