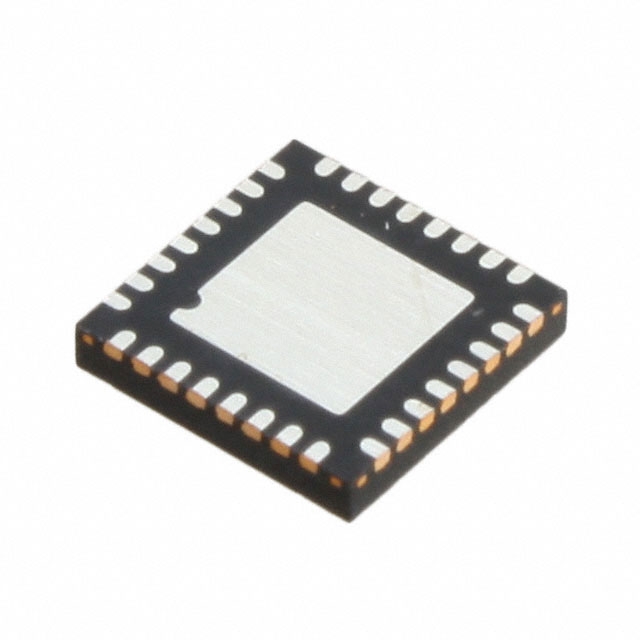

TS4982IQT

Manufacturer :

STMicroelectronics

Product Category :

Audio Amplifiers

RoHS Status :

ROHS3 Compliant

Output Power :

2W

Operating Temperature :

-40°C~85°C TA

ECCN Code :

EAR99

Type :

Class AB

Peak Reflow Temperature (Cel) :

260

Dual Supply Voltage :

5V

Height Seated (Max) :

1mm

Terminal Finish :

Matte Tin (Sn) - annealed

Terminal Pitch :

0.5mm

Number of Terminations :

32

Gain :

3.5 dB

Power Supply Rejection Ratio (PSRR) :

75dB

Nominal Supply Current :

12mA

Max Output Power x Channels @ Load :

2W x 2 @ 4 Ω; 125mW x 2 @ 16 Ω

Operating Supply Voltage :

5V

Mounting Type :

Surface Mount

Package / Case :

32-VFQFN Exposed Pad

Number of Functions :

1

Pin Count :

32

Max Dual Supply Voltage :

5.5V

Max Supply Current :

12mA

Lead Free :

Lead Free

Max Output Power :

2W

Output Type :

2-Channel (Stereo) with Stereo Headphones

Base Part Number :

TS4982

Radiation Hardening :

No

Min Dual Supply Voltage :

4.5V

Width :

5mm

Voltage - Supply :

4.5V~5.5V

Number of Channels :

2

Power Supplies :

5V

Terminal Position :

QUAD

Length :

5mm

Number of Pins :

32

Voltage Gain :

13.5dB

Pbfree Code :

yes

Mount :

Surface Mount

Feature :

3D, Depop, Short-Circuit and Thermal Protection, Standby

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-609 Code :

e3

Bandwidth :

22 kHz

Packaging :

Tape and Reel (TR)
