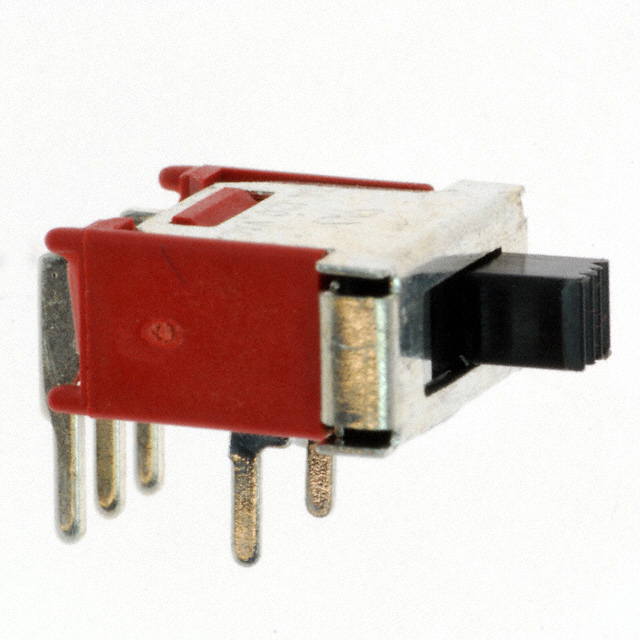

TS01AQE
Or copy the link below:
- Mfr.Part #
- TS01AQE
- Manufacturer
- C&K
- Package / Case
- Datasheet
- Download
- Description
- SWITCH SLIDE SPDT 3A 120V
- Stock
- 225
- In Stock ：
- 225
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- C&K
- Product Category :
- Contact Finish :
- Silver
- Termination Style :
- PC Pin
- Number of Positions :
- 2
- Orientation :
- RIGHT ANGLE
- Current Rating :
- 3A
- Feature :
- Epoxy Sealed Terminals
- Switch Travel :
- 3.05mm
- Switch Function :
- On-On
- Max Voltage Rating (AC) :
- 120V
- Actuator Material :
- Polyamide (PA), Nylon
- Contact Current Rating :
- 3A
- Packaging :
- Bulk
- Voltage - Rated AC :
- 120V
- Electrical Life :
- 60,000 Cycles
- Operating Temperature :
- -30°C~85°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Actuator Type :
- Standard
- Series :
- TS
- Length :
- 10.16mm
- Contact Material :
- Silver (Ag)
- Mount :
- Brackets, Through Hole
- Published :
- 2012
- Actuator Length :
- 3.10mm
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Through Hole, Right Angle
- Current Rating (Amps) :
- 3A AC/DC
- Termination :
- PC Pins
- Circuit :
- SPDT
- Lead Free :
- Lead Free
- Housing Material :
- Stainless Steel
- Radiation Hardening :
- No
- Contact Timing :
- NOT SPECIFIED
- Factory Lead Time :
- 14 Weeks
- Depth :
- 13.13mm
- Max Current Rating :
- 3A
- Voltage - Rated DC :
- 28V
- Max Voltage Rating (DC) :
- 28V
- Datasheets
- TS01AQE
