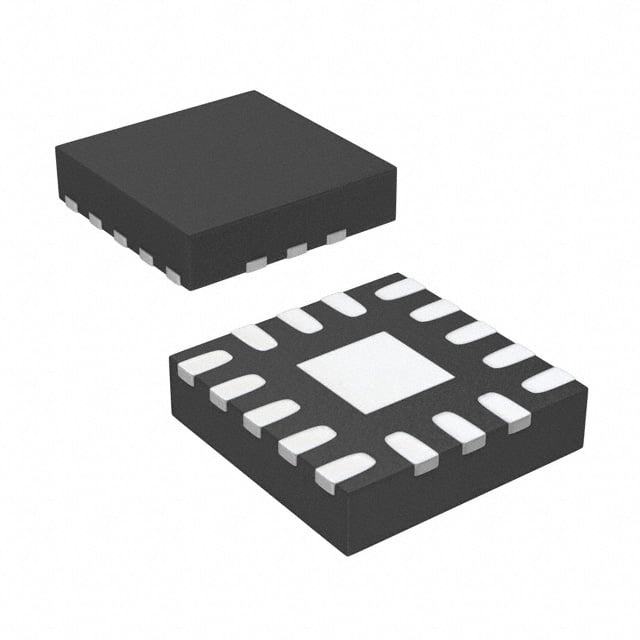

TRF3702IRHCR

Share

Or copy the link below:

Mfr.Part #
TRF3702IRHCR
Manufacturer
Texas Instruments
Package / Case
16-VQFN Exposed Pad
Datasheet
Download
Description
RF MODULATOR 1.5GHZ-2.5GHZ 16QFN
Stock
5,861
In Stock :
5,861

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Texas Instruments
Product Category :
RF Modulators
Length :
4mm
P1dB :
7dBm
Base Part Number :
TRF3702
Output Power :
-2.5dBm
Frequency :
1.5GHz
Height Seated (Max) :
1mm
Packaging :
Tape and Reel (TR)
Min Operating Temperature :
-40°C
Surface Mount :
yes
Supply Voltage :
5V
Radiation Hardening :
No
Terminal Pitch :
0.8mm
JESD-609 Code :
e4
Test Frequency :
1.842GHz
Voltage - Supply :
4.5V~5.5V
Temperature Grade :
Industrial
Number of Terminations :
16
HTS Code :
8542.39.00.01
Telecom IC Type :
RF AND BASEBAND CIRCUIT
Moisture Sensitivity Level (MSL) :
2 (1 Year)
Supply Current-Max :
0.17mA
Noise Floor :
-155dBm/Hz
Function :
Modulator
Package / Case :
16-VQFN Exposed Pad
Weight :
41.503702mg
Lead Free :
Lead Free
Operating Supply Current :
170mA
LO Frequency :
1.5GHz~2.5GHz
Max Operating Temperature :
85°C
Width :
4mm
Power Supplies :
5V
Terminal Finish :
Nickel/Palladium/Gold (Ni/Pd/Au)
RoHS Status :
ROHS3 Compliant
Peak Reflow Temperature (Cel) :
260
Terminal Position :
QUAD
Number of Pins :
16
RF Frequency :
1.5GHz~2.5GHz
Operating Supply Voltage :
5.5V
Datasheets
TRF3702IRHCR
Introducing RF Modulators Texas Instruments TRF3702IRHCR from Chip IC,where excellence meets affordability. This product stands out with its Base Part Number:TRF3702, Number of Terminations:16, Package / Case:16-VQFN Exposed Pad, Number of Pins:16, TRF3702IRHCR pinout, TRF3702IRHCR datasheet PDF, TRF3702IRHCR amp .Beyond RF Modulators Texas Instruments TRF3702IRHCR ,we also offer MC44BC374CEDR2, MAX2452ISE+, ADL5374ACPZ-WP, Our vast inventory has you covered. Contact us now for immediate solutions.
