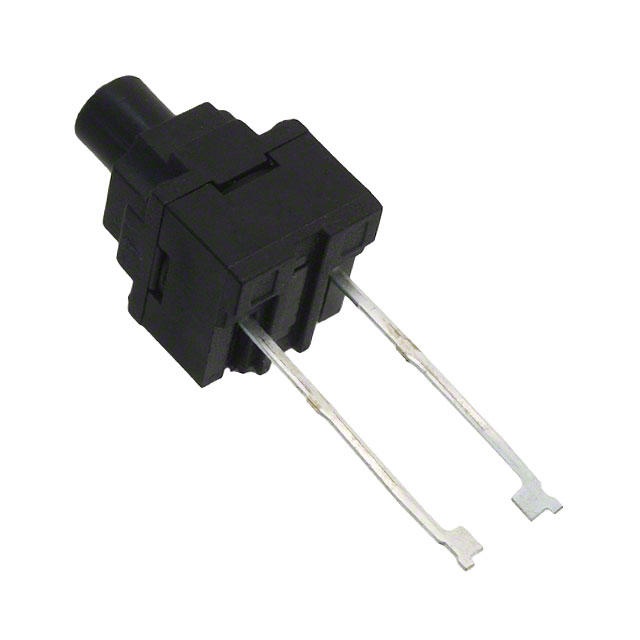

TL52AF160Q

Manufacturer :

E-Switch

Product Category :

Body Breadth :

8 mm

Contact Rating @ Voltage :

0.05A @ 12VDC

Factory Lead Time :

11 Weeks

PCB Hole Count :

2

Illumination :

Non-Illuminated

Outline :

8.00mm x 8.00mm

Body Length or Diameter :

8mm

Insulation Resistance :

100000000Ohm

Actuator Type :

Standard

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Current(DC)-Max :

0.05A

ECCN Code :

EAR99

Contact Resistance :

0.1mOhm

Series :

TL52

REACH SVHC :

No SVHC

Ratings :

Dust Tight, IP67, Waterproof

Contact Plating :

Silver

Switch Function :

Off-Mom

Actuator Travel :

0.3048 mm

Switch Travel :

0.30mm

Published :

2003

Number of Switches :

1

RoHS Status :

ROHS3 Compliant

Package / Case :

Radial

Termination Style :

PC Pin

Current Rating :

50mA

Switch Type :

KEYPAD SWITCH

Length - Termination :

0.193 inch

Operating Temperature :

-25°C~85°C

HTS Code :

8536.50.90.40

Throw Configuration :

SPST

Voltage - Rated DC :

12V

Mounting Type :

Through Hole

Ingress Protection :

IP67 - Dust Tight, Waterproof

Circuit :

SPST-NO

Actuator Height off PCB, Vertical :

13.00mm

Body Height :

9.3mm

Contact (DC) Max Rating R Load :

.05A@12VDC

Dielectric Withstanding Voltage :

250VAC V

Electrical Life :

100000 Cycle(s)

Actuator Length :

0.146 inch

Termination :

PC Pin

Packaging :

Tape and Box (TB)

Illumination Type :

Illuminated, Non-Illuminated

Actuator Orientation :

Top Actuated

Contact Bounce Time-Max :

10ms

Mount :

Sealed, Through Hole

Operating Force :

160gf

Mechanical Life :

100,000 Cycles
