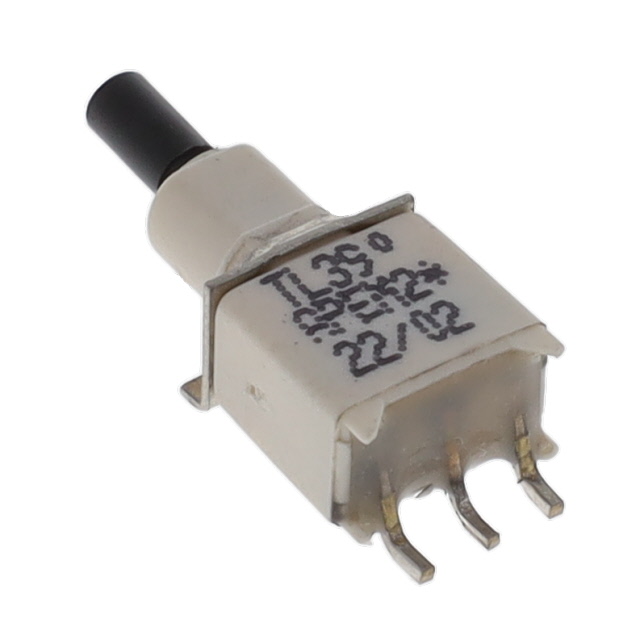

TL39WS84000
Or copy the link below:
- Mfr.Part #
- TL39WS84000
- Manufacturer
- APEM Inc.
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE SPDT 0.4VA 20V
- Stock
- 338
- In Stock ：
- 338
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- APEM Inc.
- Product Category :
- Terminal Finish :
- Tin (Sn)
- Actuator Length :
- 5.50mm
- Contact Resistance :
- 0.02mOhm
- Current Rating (Amps) :
- 0.4VA AC/DC
- Actuator Type :
- Standard Round
- Solderability :
- WAVE
- Sealing :
- Epoxy
- Voltage - Rated AC :
- 20V
- Washability :
- WATER/STEAM
- Max Voltage Rating (AC) :
- 20V
- RoHS Status :
- ROHS3 Compliant
- Switch Function :
- On-Off-On
- Contact (DC) Max Rating R Load :
- .02A@20VDC
- Contact Material :
- Brass
- ECCN Code :
- EAR99
- Mounting Type :
- Surface Mount, Right Angle
- Mount :
- Surface Mount
- Housing Material :
- Thermoplastic
- Operating Temperature :
- -40°C~85°C
- Packaging :
- Bulk
- Electrical Life :
- 30,000 Cycles
- Max Voltage Rating (DC) :
- 20V
- Series :
- SMT TL
- Insulation Resistance :
- 1000000000Ohm
- Length :
- 8.1mm
- Termination :
- Gull wing
- Bushing Thread :
- Unthreaded
- Body Height :
- 5.55mm
- Actuator Material :
- Brass, Nickel Plated
- JESD-609 Code :
- e3
- Termination Style :
- Gull wing
- Packing Method :
- Tape and Reel
- Switch Type :
- TOGGLE SWITCH
- Contact Plating :
- Gold
- Contact (AC) Max Rating R Load :
- .02A@20VAC
- HTS Code :
- 8536.50.90.65
- Illumination :
- Non-Illuminated
- Contact Current(DC)-Max :
- 0.02A
- Dielectric Withstanding Voltage :
- 1000VRMS V
- Additional Feature :
- TAPE and REEL PACKAGING
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 9 Weeks
- Circuit :
- SPDT
- Contact (AC) Max Power Rating R Load :
- 0.4VA@20VAC
- Feature :
- High Temperature Plastic Cap
- Voltage - Rated DC :
- 20V
- Contact Current(AC)-Max :
- 0.02A
- Datasheets
- TL39WS84000
