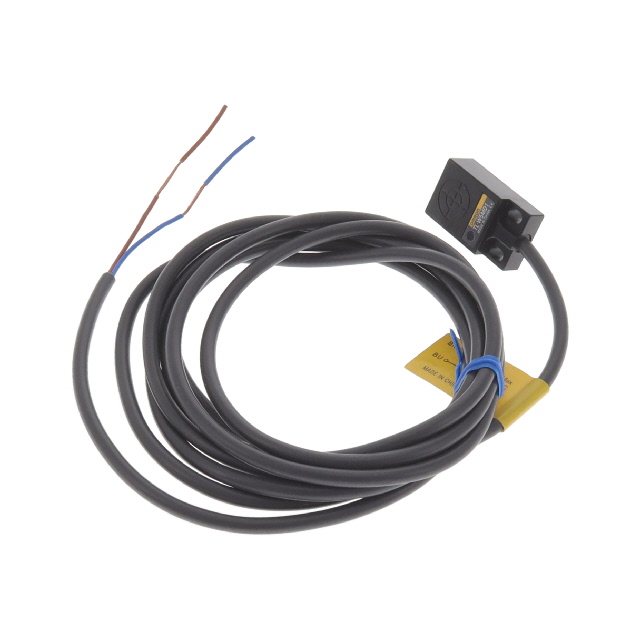

TL-W5MD1
Or copy the link below:
- Mfr.Part #
- TL-W5MD1
- Manufacturer
- Omron Automation
- Package / Case
- Module
- Datasheet
- Download
- Description
- SENSOR PROX INDUCT 5MM IP67 MOD
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Omron Automation
- Product Category :
- Proximity Sensors - Industrial
- Number of Pins :
- 2
- Termination Style :
- Cable Leads
- Shielding :
- Unshielded
- Termination :
- Cable Leads
- Response Frequency :
- 500Hz
- Height :
- 30.5mm
- Operating Temperature :
- -25°C~70°C
- Length :
- 18mm
- Factory Lead Time :
- 6 Weeks
- Sensor Type :
- Inductive
- Max Supply Voltage (DC) :
- 30V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Panel
- Material - Body :
- Plastic
- Output Type :
- NPN-NO, 2-Wire
- Min Supply Voltage (DC) :
- 10V
- Width :
- 10mm
- Package / Case :
- Module
- Measurement Range-Min :
- 4.5 mm
- RoHS Status :
- RoHS Compliant
- Voltage - Supply :
- 10V~30V
- Sensing Distance :
- 0.197 (5mm)
- Housing :
- ABS
- Ingress Protection :
- IP67
- Operating Supply Voltage :
- 24V
- REACH SVHC :
- Unknown
- Operating Supply Current :
- 10mA
- Indicator :
- LED
- Published :
- 2008
- Measurement Range-Max :
- 5.5 mm
- Datasheets
- TL-W5MD1
10V~30V Inductive Module Plastic Cable Leads Module 2-Pin
TL-W5MD1 Overview
We have included it with the Module package in order to make your life easier. If the proximity sensors are operated at a temperature of -25°C~70°C, they will perform well. The pin count on this electronic component is 2. To achieve maximum efficiency, proximity sensors should be powered by 24V. There is a maximum voltage of 30V that can be applied to proximity sensors without damaging them in a DC circuit. There should be no current flowing in the DC circuit below the value of 10V, otherwise, there will be a risk of damage to the proximity sensors. For maximum efficiency, you should set the current of this electronic component to 10mA.
TL-W5MD1 Features
Operating Temperature: -25°C~70°C
Sensing Distance: 0.197 (5mm)
Voltage - Supply: 10V~30V
Response Frequency: 500Hz
Measurement Range-Max: 5.5 mm
Package / Case: Module
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Supply Current: 10mA
TL-W5MD1 Applications
There are a lot of Omron Automation and Safety
TL-W5MD1 Proximity Sensors applications.
- Display products
- Air-conditioners
- TV
- PC monitors
- Rice cookers
- Smart toilets
- Recycling plants
- Self-driving cars
- Anti-aircraft systems
- Assembly lines
