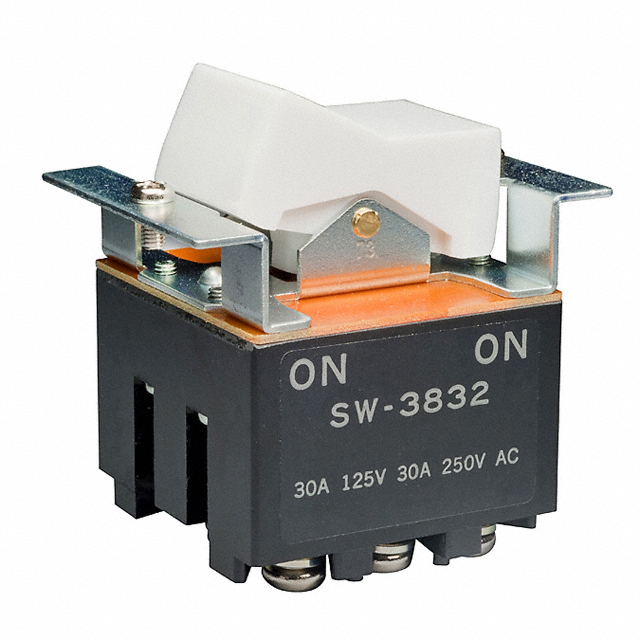

SW3832
Or copy the link below:
- Mfr.Part #
- SW3832
- Manufacturer
- NKK Switches
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROCKER 3PDT 30A 125V
- Stock
- 216
- In Stock ：
- 216
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NKK Switches
- Product Category :
- Contact Current Rating :
- 30A
- Width :
- 42mm
- Terminal Finish :
- Tin (Sn)
- Operating Temperature :
- -10°C~70°C
- Lead Free :
- Contains Lead
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 2
- Actuator Marking :
- No Marking
- Current Rating :
- 30A
- Number of Poles :
- 3
- Termination :
- Screw
- Switch Function :
- On-On
- Max Current Rating :
- 30A
- Voltage - Rated DC :
- 30V
- Series :
- SW
- Max Voltage Rating (DC) :
- 125V
- Contact Plating :
- Silver
- ECCN Code :
- EAR99
- Termination Style :
- Screw Terminal
- Pbfree Code :
- yes
- Max Voltage Rating (AC) :
- 250V
- Mounting Type :
- Panel Mount, Flange
- Mechanical Life :
- 50,000 Cycles
- Current Rating (Amps) :
- 30A AC/DC
- Approval Agency :
- CSA, UL
- Electrical Life :
- 25,000 Cycles
- Packaging :
- Bulk
- Actuator Material :
- Resin
- Orientation :
- Vertical
- Illumination Type :
- Illuminated
- Depth :
- 43mm
- Circuit :
- 3PDT
- Color - Actuator/Cap :
- White
- Contact Material :
- Copper, Silver
- JESD-609 Code :
- e3
- REACH SVHC :
- No SVHC
- Mount :
- Flanges, Panel
- Published :
- 2002
- Factory Lead Time :
- 18 Weeks
- Actuator Type :
- Concave (Standard V)
- Voltage - Rated AC :
- 125V
- Length :
- 56mm
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- SW3832
SW3832 Documents
SW3832 datasheet pdf and Rocker Switches product details from NKK Switches stock available at
