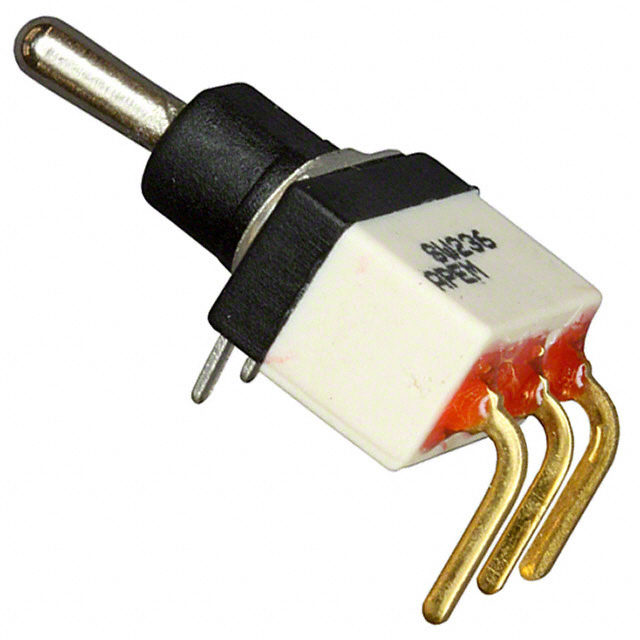

SW236AD7
Or copy the link below:
- Mfr.Part #
- SW236AD7
- Manufacturer
- APEM Inc.
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE SPDT 4A 30V
- Stock
- 42,853
- In Stock ：
- 42,853
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- APEM Inc.
- Product Category :
- Mounting Type :
- Through Hole, Right Angle
- Contact Current(DC)-Max :
- 4A
- Bushing Thread :
- Unthreaded
- Circuit :
- SPDT
- Illumination :
- Non-Illuminated
- Actuator Material :
- Brass, Chrome Plated
- Body Length or Diameter :
- 12.7mm
- Pbfree Code :
- yes
- Current Rating (Amps) :
- 4A DC
- Contact (DC) Max Rating R Load :
- 4A@30VDC
- ECCN Code :
- EAR99
- Contact (AC) Max Rating R Load :
- 5A@125VAC
- Body Height :
- 6.9mm
- Packaging :
- Bulk
- Electrical Life :
- 40,000 Cycles
- Contact Current(AC)-Max :
- 5A
- Voltage - Rated DC :
- 30V
- Actuator Type :
- Standard Round
- Factory Lead Time :
- 9 Weeks
- Current Rating :
- 300mA
- Series :
- S
- Contact Voltage(AC)-Max :
- 125V
- Mount :
- Through Hole
- Termination :
- PC Pin
- Switch Function :
- On-On
- Operating Temperature :
- -20°C~85°C
- HTS Code :
- 8536.50.90.65
- Actuator Length :
- 7.50mm
- Feature :
- Sealed
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Body Breadth :
- 12.7 mm
- Termination Style :
- PC Pin
- Datasheets
- SW236AD7
