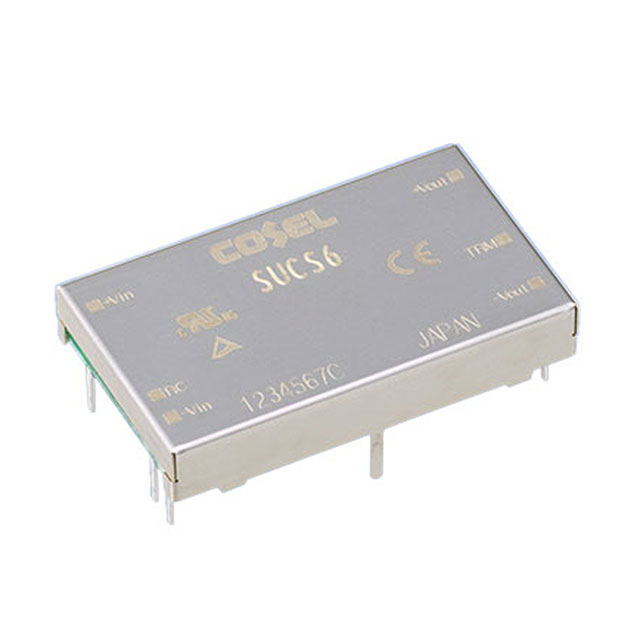

SUCS62405C

Manufacturer :

Cosel

Product Category :

Series :

SUCS (6W)

Feature :

Remote On/Off, OCP

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Package / Case :

6-DIP Module

Mount :

Through Hole

Factory Lead Time :

6 Weeks

Operating Temperature :

-40°C~85°C With Derating

Published :

2005

Current - Output 1 :

1.2A

Voltage - Isolation :

500V

Moisture Sensitivity Level (MSL) :

Not Applicable

Trim/Adjustable Output :

yes

ECCN Code :

EAR99

Peak Reflow Temperature (Cel) :

225

Weight :

7.000008g

Height :

7.112mm

Length :

32.6mm

Voltage - Input (Min) :

18V

JESD-609 Code :

e3

Total Power Output-Max :

6W

Input Voltage-Nom :

24V

JESD-30 Code :

R-XDMA-T6

Size / Dimension :

1.28Lx0.73W x 0.28 H 32.6mmx18.6mmx7.0mm

Efficiency :

81%

Number of Terminations :

6

Output Voltage :

5V

RoHS Status :

ROHS3 Compliant

Mounting Type :

Through Hole

Terminal Finish :

MATTE TIN

Applications :

ITE (Commercial)

Reach Compliance Code :

Unknown

Lead Free :

Lead Free

Voltage - Input (Max) :

36V

Number of Functions :

1

Output Power :

6W

Type :

Isolated Module

Terminal Position :

Dual

Depth :

7mm

Pbfree Code :

yes

Number of Outputs :

1
