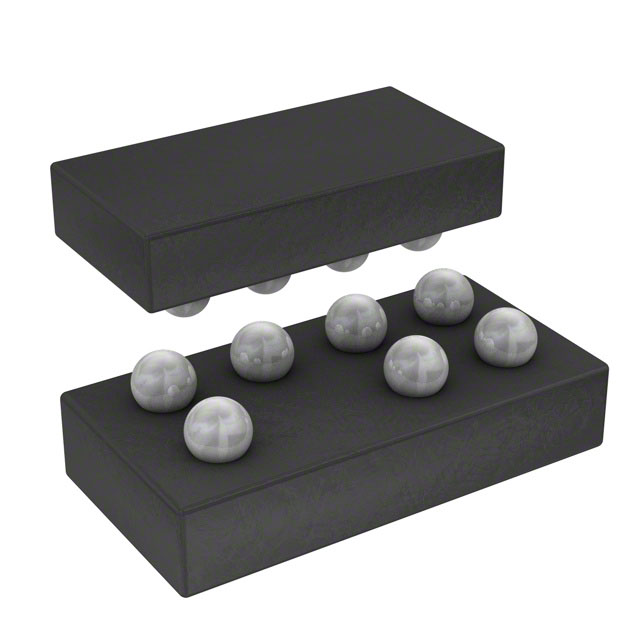

STG4159BJR

Manufacturer :

STMicroelectronics

Product Category :

Analog Switches, Multiplexers, Demultiplexers

Number of Terminations :

7

Multiplexer/Demultiplexer Circuit :

2:1

Number of Channels :

1

Time@Peak Reflow Temperature-Max (s) :

40

Number of Inputs :

1

Moisture Sensitivity Level (MSL) :

Not Applicable

Number of Outputs :

2

On-state Resistance Match-Nom :

0.005ohm

Pin Count :

7

Switch Time (Ton, Toff) (Max) :

38ns, 17ns

Power Dissipation :

500mW

Off-state Isolation-Nom :

69 dB

RoHS Status :

ROHS3 Compliant

Max Supply Voltage :

4.8V

Switching :

BREAK-BEFORE-MAKE

Packaging :

Tape and Reel (TR)

Crosstalk :

-69dB @ 100kHz

Operating Temperature :

-40°C~85°C TA

Mount :

Surface Mount

Channel-to-Channel Matching (ΔRon) :

3m Ω

Package / Case :

7-WFBGA, FCBGA

Peak Reflow Temperature (Cel) :

260

Mounting Type :

Surface Mount

Terminal Pitch :

0.5mm

Terminal Position :

BOTTOM

Min Supply Voltage :

1.65V

Operating Supply Current :

50nA

Max Power Dissipation :

500mW

Number of Functions :

1

Turn-Off Delay Time :

17 ns

On-State Resistance (Max) :

300mOhm

Supply Voltage :

1.8V

Radiation Hardening :

No

Channel Capacitance (CS(off), CD(off)) :

30pF

Supply Type :

Dual, Single

Current - Leakage (IS(off)) (Max) :

30nA

Turn On Delay Time :

38 ns

Switch Circuit :

SPDT

Charge Injection :

140pC

Max Supply Current :

50nA

Terminal Form :

Ball

-3db Bandwidth :

28MHz

Lead Free :

Lead Free

Resistance :

300mOhm

Number of Pins :

7

Base Part Number :

STG4159

Voltage - Supply, Single (V+) :

1.65V~4.8V
