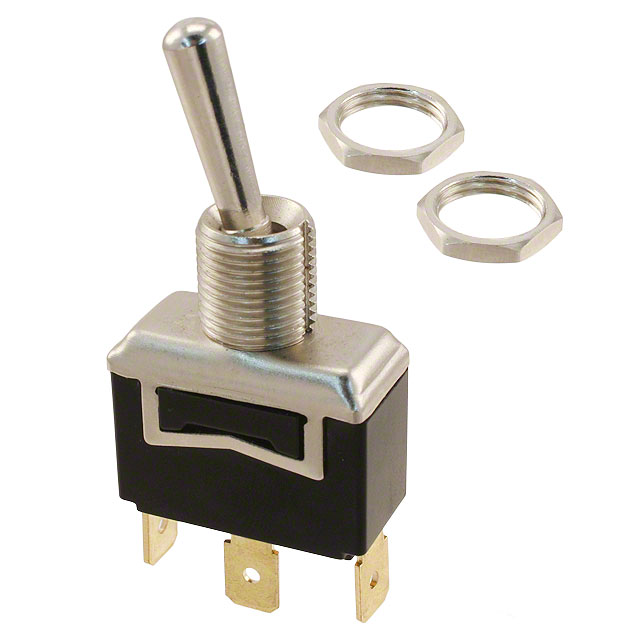

ST143D00
Or copy the link below:
- Mfr.Part #
- ST143D00
- Manufacturer
- E-Switch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE SPDT 20A 125V
- Stock
- 570
- In Stock ：
- 570
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- Panel Cutout Dimensions :
- Circular - 12.00mm Dia
- Switch Function :
- On-On
- Current Rating (Amps) :
- 20A AC
- Actuator Material :
- Brass, Nickel Plated
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Mounting Type :
- Panel Mount
- Mount :
- Panel
- Contact Current Rating :
- 20A
- Actuator Type :
- Standard Round
- Max Operating Temperature :
- 85°C
- Factory Lead Time :
- 9 Weeks
- Circuit :
- SPDT
- Series :
- ST1, LAMB
- Illumination :
- Non-Illuminated
- Published :
- 2012
- Throw Configuration :
- DPDT, SPDT
- REACH SVHC :
- No SVHC
- Current Rating :
- 20A
- Electrical Life :
- 6,000 Cycles
- Bushing Thread :
- M12 x 1
- RoHS Status :
- ROHS3 Compliant
- Operating Temperature :
- -20°C~85°C
- Contact Plating :
- Silver
- Voltage - Rated AC :
- 125V
- Illumination Type :
- Illuminated, Non-Illuminated
- Termination :
- Quick Connect
- Min Operating Temperature :
- -20°C
- Termination Style :
- Quick Connect - 0.250 (6.3mm)
- Actuator Length :
- 19.50mm
- Datasheets
- ST143D00
ST143D00 Documents
ST143D00 datasheet pdf and Toggle Switches product details from E-Switch stock available at
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
