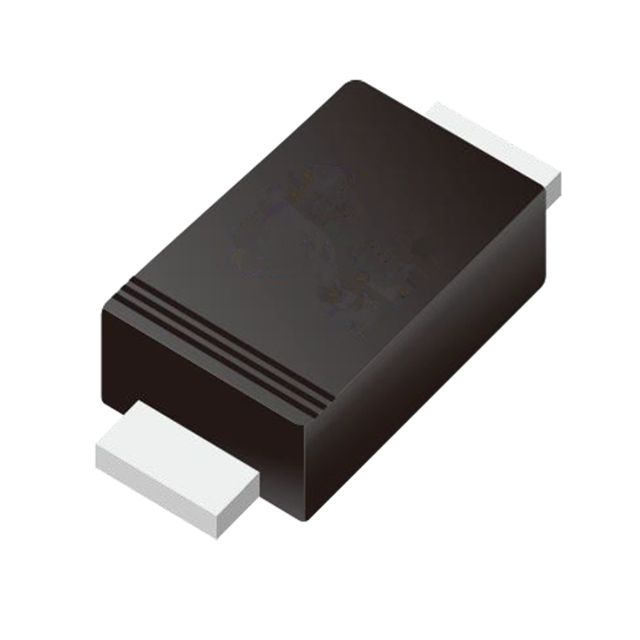

SS36F

Manufacturer :

MDD

Product Category :

Diodes - Rectifiers - Single

Published :

2016

Peak Reflow Temperature (Cel) :

260

Mount :

Surface Mount

ECCN Code :

EAR99

Number of Terminations :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current - Reverse Leakage @ Vr :

500μA @ 60V

Factory Lead Time :

10 Weeks

Mounting Type :

Surface Mount

Number of Elements :

1

Max Reverse Voltage (DC) :

60V

Additional Feature :

LOW POWER LOSS

Max Forward Surge Current (Ifsm) :

80A

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Series :

Automotive, AEC-Q101

Operating Temperature - Junction :

-55°C~150°C

Diode Type :

Schottky

Weight :

19mg

Package / Case :

SOD-123W

Application :

EFFICIENCY

Element Configuration :

Single

Voltage - Forward (Vf) (Max) @ If :

750mV @ 3A

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Packaging :

Tape and Reel (TR)

Terminal Position :

Dual

Lifecycle Status :

ACTIVE (Last Updated: 9 hours ago)

Operating Temperature (Max) :

150°C

Reverse Recovery Time-Max :

0.011μs

Reverse Current-Max :

500μA

Diode Element Material :

SILICON

Forward Current :

3A

HTS Code :

8541.10.00.80

RoHS Status :

ROHS3 Compliant

Pbfree Code :

yes

Capacitance @ Vr, F :

170pF @ 4V 1MHz

Terminal Form :

Flat

Number of Phases :

1

Average Rectified Current :

3A

Output Current-Max :

3A

Reach Compliance Code :

not_compliant

Max Repetitive Reverse Voltage (Vrrm) :

60V

JESD-30 Code :

R-PDSO-F2

Terminal Finish :

Tin (Sn)

JESD-609 Code :

e3
