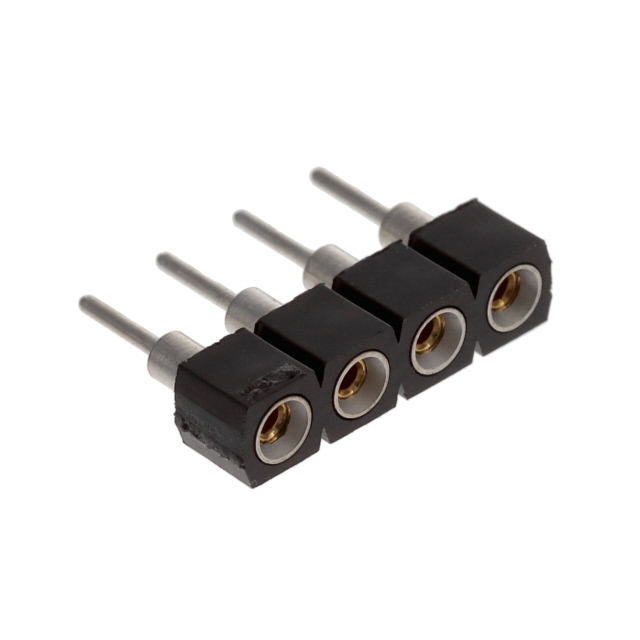

SS-104-S-2
Or copy the link below:
- Mfr.Part #
- SS-104-S-2
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 4POS 0.1 GOLD PCB
- Stock
- 557
- In Stock ：
- 557
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Type :
- Female Socket
- Contact Finish - Post :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- SS
- Style :
- Board to Board
- Housing Material :
- Polyester
- IEC Conformance :
- No
- Option :
- GENERAL PURPOSE
- Fastening Type :
- Push-Pull
- Factory Lead Time :
- 3 Weeks
- Number of Rows :
- 1
- Contact Resistance :
- 10MOhm
- Mounting Type :
- Through Hole
- Packaging :
- Tube
- Length :
- 10.16mm
- RoHS Status :
- ROHS3 Compliant
- Connector Type :
- Receptacle
- Contact Material :
- BERYLLIUM COPPER
- DIN Conformance :
- No
- MIL Conformance :
- No
- Pitch - Mating :
- 0.100 2.54mm
- Pbfree Code :
- yes
- Number of Positions :
- 4
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Termination :
- Solder
- ECCN Code :
- EAR99
- Gender :
- FEMALE
- Radiation Hardening :
- No
- Filter Feature :
- No
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- Number of Positions Loaded :
- All
- Contact Finish - Mating :
- Gold
- Depth :
- 2.54mm
- Published :
- 2016
- Insulation Color :
- Black
- Contact Shape :
- Circular
- Mixed Contacts :
- No
- Contact Length - Post :
- 0.125 3.18mm
- Insulation Height :
- 0.100 2.54mm
- Orientation :
- Straight
- Operating Temperature :
- -55°C~125°C
- JESD-609 Code :
- e3
- Max Current Rating :
- 1A
- Datasheets
- SS-104-S-2
1 Rows Receptacle Solder Beryllium Copper Through Hole Tube Gold Polybutylene Terephthalate (PBT), Glass Filled 4 Positions Female Socket
SS-104-S-2 Overview
The packaging contains Receptacle.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tube.Product number SS belongs to the SS Series.This device operates at a temperature of -55°C~125°C.
SS-104-S-2 Features
SS series
SS-104-S-2 Applications
There are a lot of Samtec Inc.
SS-104-S-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
