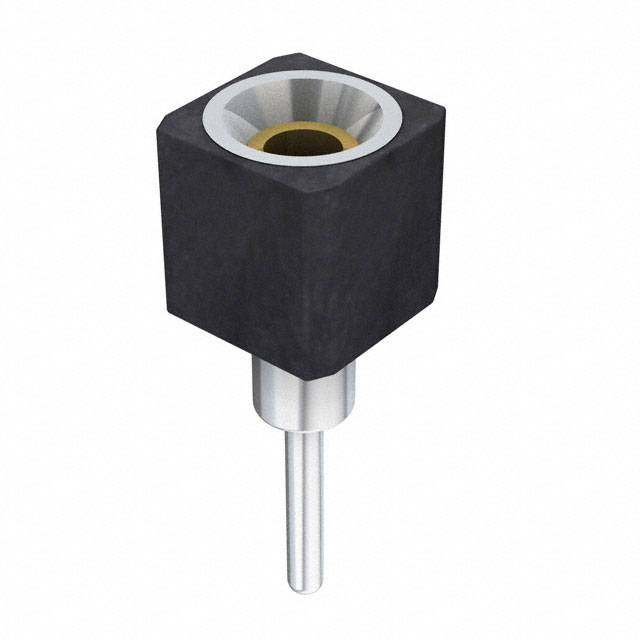

SS-101-T-2

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Receptacles, Female Sockets

MIL Conformance :

No

Operating Temperature :

-55°C~125°C

PCB Contact Pattern :

RECTANGULAR

Connector Type :

Receptacle

Contact Finish - Post :

Tin

Housing Color :

Black

Packaging :

Bulk

JESD-609 Code :

e3

Mount :

Through Hole

Insulation Height :

0.300 7.62mm

Number of Positions Loaded :

All

Contact Shape :

Circular

Series :

SS

Mounting Type :

Through Hole

Polarization Key :

POLARIZED HOUSING

HTS Code :

8536.69.40.40

DIN Conformance :

No

Fastening Type :

Push-Pull

Number Of PCB Rows :

1

IEC Conformance :

No

Radiation Hardening :

No

Mixed Contacts :

No

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Filter Feature :

No

Width :

2.54mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

1

Contact Type :

Female Socket

Contact Material :

BERYLLIUM COPPER

Reliability :

COMMERCIAL

Rated Current (Signal) :

1A

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

ECCN Code :

EAR99

Housing Material :

Plastic

Contact Finish - Mating :

Gold

Published :

2008

Length :

2.54mm

Pbfree Code :

yes

Contact Length - Post :

0.125 3.18mm

Gender :

FEMALE

Lead Free :

Lead Free

Insertion Force-Max :

4.448 N

Height :

2.54mm

Reference Standard :

UL

Termination :

Solder

Number of Conductors :

ONE

Plating Thickness :

30μin

Number of Positions :

1

RoHS Status :

ROHS3 Compliant

Style :

Board to Board

Option :

GENERAL PURPOSE
