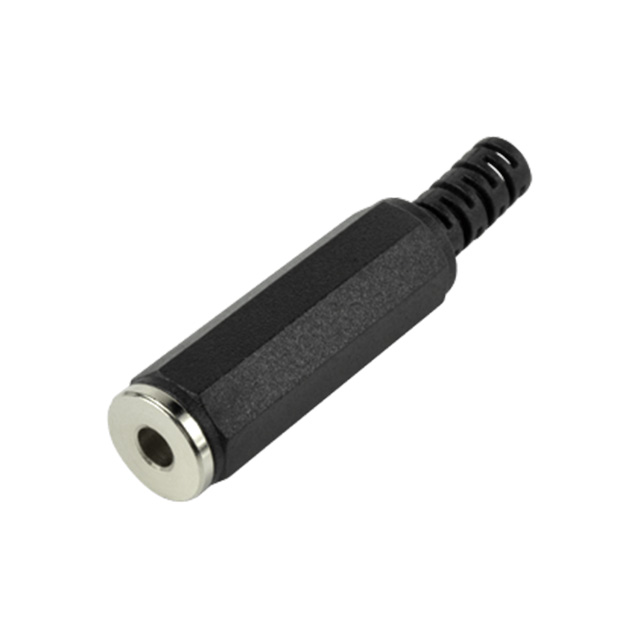

SR-3530
Or copy the link below:
- Mfr.Part #
- SR-3530
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- AUDIO JACK, 3.5 MM, STRAIGHT, 3
- Stock
- 697
- In Stock ：
- 697
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Audio Connectors
- Voltage - Rated :
- 12VDC
- Contact Material - Plating :
- Gold
- Actual Diameter :
- 0.142 (3.60mm)
- Signal Lines :
- Stereo (3 Conductor, TRS)
- Operating Temperature :
- -25°C~70°C
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Industry Recognized Mating Diameter :
- 3.50mm (0.141, 1/8, Mini Plug) - Headphone
- Mounting Type :
- Free Hanging (In-Line)
- Shielding :
- Unshielded
- Packaging :
- Bulk
- Includes :
- 2 pcs - 1 Connector, 1 Cover
- RoHS Status :
- RoHS Compliant
- Gender :
- FEMALE
- Termination :
- Solder
- Insulation Color :
- Black
- Housing Material :
- Polyvinyl Chloride (PVC)
- Number of Positions/Contacts :
- 3 Conductors, 3 Contacts
- Body Material :
- Brass
- Contact Material :
- Brass, Phosphor Bronze
- Body Color :
- Silver, Black
- Internal Switch(s) :
- Does Not Contain Switch
- Feature :
- Cover, Strain Relief
- Factory Lead Time :
- 12 Weeks
- Cable Opening :
- 0.157 (4.00mm)
- Connector Type :
- Phone Jack
- Current Rating (Amps) :
- 1A
- Mating Length/Depth :
- 0.551 14.00mm
- Datasheets
- SR-3530
