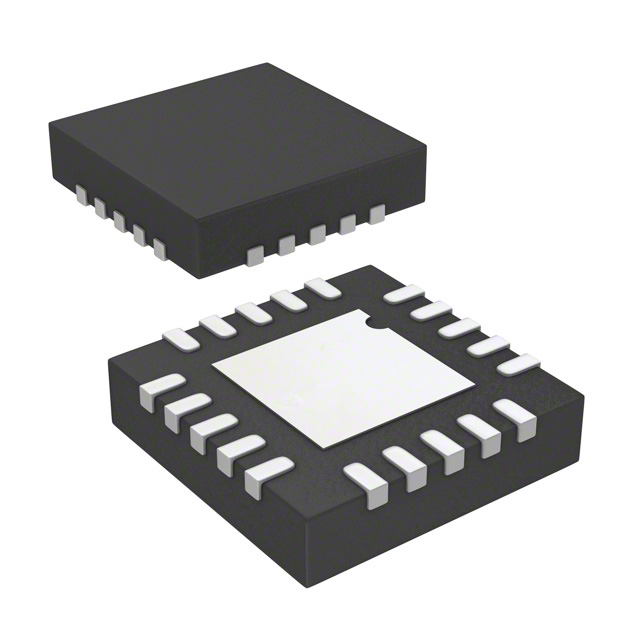

SPIRIT1QTR

Manufacturer :

STMicroelectronics

Product Category :

RF Transceiver ICs

Type :

TxRx Only

Base Part Number :

SPIRIT1

Terminal Position :

QUAD

Differential Output :

No

Operating Temperature :

-40°C~105°C

Height :

950μm

Supply Voltage :

3V

Length :

4mm

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Packaging :

Digi-Reel®

Number of Pins :

20

Max Supply Current :

400μA

Package / Case :

20-VFQFN Exposed Pad

Operating Supply Voltage :

3V

JESD-609 Code :

e3

Terminal Pitch :

0.5mm

Contact Plating :

Tin

Number of Terminations :

20

Data Rate (Max) :

500Kbps

Depth :

4mm

Voltage - Supply :

1.8V~3.6V

REACH SVHC :

No SVHC

Sensitivity (dBm) :

-118 dBm

Input Characteristics :

Standard

ECCN Code :

5A992.C

Current - Transmitting :

6mA~54mA

Mounting Type :

Surface Mount

Power - Output :

16dBm

Width :

4.15mm

Weight :

123.008581mg

Number of Functions :

1

GPIO :

4

Serial Interfaces :

SPI

Modulation :

2FSK, ASK, GFSK, GMSK, MSK, OOK

Frequency :

150MHz~174MHz 300MHz~348MHz 387MHz~470MHz 779MHz~956MHz

Number of Receivers :

1

Peak Reflow Temperature (Cel) :

260

RF Family/Standard :

General ISM < 1GHz

Lifecycle Status :

ACTIVE (Last Updated: 7 months ago)

Current - Receiving :

9.2mA~9.8mA

Radiation Hardening :

No

Mount :

Surface Mount

Lead Free :

Lead Free

Factory Lead Time :

10 Weeks

Driver Number of Bits :

1

RoHS Status :

ROHS3 Compliant
