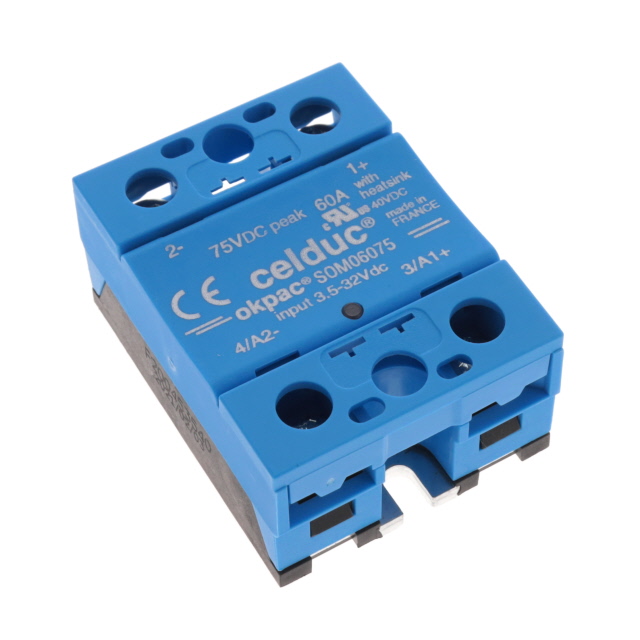

SOM06075

Manufacturer :

Celduc

Product Category :

Solid State Relays

Maximum Input Voltage (V) :

32

PCB changed :

4

Radiation Hardening :

No

I/O Isolation Voltage (V) :

2500

Minimum Operating Temperature (°C) :

-25

Dimensions :

45 x 58.5 x 30mm

Typical Input to Output Capacitance (pF) :

8(Max)

Max Operating Temperature :

90 °C

Maximum Turn-On Time (ms) :

0.02

On-State Resistance (Max) :

4.5 mOhms

Length :

45mm

ECCN (US) :

EAR99

Output Current :

60 A

Maximum Output Voltage (V) :

24

Package Height :

30(Max)

RoHS :

Compliant

RoHS Status :

Supplier Unconfirmed

Mount :

Chassis, Screw

Operating Temperature Range :

-40 → +90°C

Package Width :

45(Max)

Package / Case :

Module

Maximum Output Current (A) :

60

Input Type :

DC

Output Device :

MOSFET

Height :

30mm

Voltage - Input :

3.5 ~ 32VDC

Standards Met :

CE, EAC, cURus

Output Type :

DC

Termination Style :

-

Minimum Load Current (mA) :

5

Mounting :

Screw

Isolation Voltage :

2.5 kV

Max Output Voltage :

24 V

Relay Type :

DC Solid State Relay

Supplier Device Package :

-

Series :

SOM

Minimum Operating Temperature :

-40°C

Number of Poles :

1

Depth :

58.5mm

Min Operating Temperature :

-40 °C

Maximum Operating Temperature (°C) :

90

Maximum Operating Temperature :

+90°C

Package :

Box

Range :

SOM

Number of Pins :

4

Load Current :

60 A

Terminal Type :

Screw

Package Length :

58.5(Max)

Minimum Input Voltage (V) :

3.5

Circuit :

SPST-NO (1 Form A)

Voltage - Load :

0 V ~ 40 V

Maximum Turn-Off Time (ms) :

0.02

Mounting Type :

Panel Mount

Product Status :

Active

Pin Count :

4
