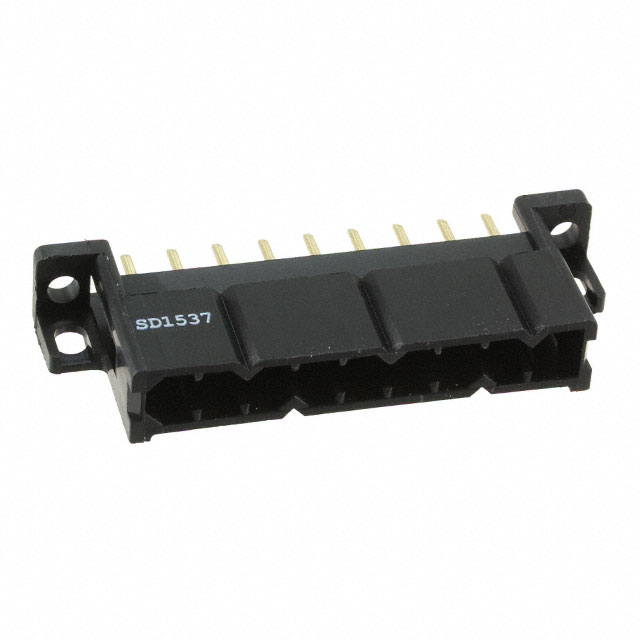

SMS9PH4D28
Or copy the link below:
- Mfr.Part #
- SMS9PH4D28
- Manufacturer
- Souriau-Sunbank by Eaton
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 9POS 5.08MM
- Stock
- 48
- In Stock ：
- 48
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Souriau-Sunbank by Eaton
- Product Category :
- Headers, Male Pins
- Length :
- 61.7mm
- Material Flammability Rating :
- UL94 V-0
- Insulation Material :
- Thermoplastic, Glass Filled
- Number of Positions Loaded :
- All
- Termination :
- Solder
- Style :
- Board to Cable/Wire
- Mount :
- Through Hole
- Current Rating :
- 5A
- Pitch - Mating :
- 0.200 5.08mm
- Contact Material :
- COPPER ALLOY
- Number of Positions :
- 9
- Depth :
- 4.9mm
- Number of Rows :
- 1
- Contact Gender :
- Male
- Shrouding :
- Shrouded - 4 Wall
- Contact Shape :
- Circular
- Connector Type :
- Header
- Contact Type :
- Male Pin
- Max Current Rating :
- 5A
- Fastening Type :
- Push-Pull
- Insulation Height :
- 0.901 22.89mm
- Row Spacing :
- 2.54 mm
- Feature :
- Mounting Flange
- Housing Color :
- Black
- RoHS Status :
- ROHS3 Compliant
- Contact Length - Post :
- 0.157 4.00mm
- Mounting Type :
- Through Hole
- Housing Material :
- Thermoplastic
- Operating Temperature :
- -55°C~125°C
- Factory Lead Time :
- 10 Weeks
- Contact Finish Thickness - Mating :
- 29.5μin 0.75μm
- Series :
- SMS
- Orientation :
- Straight
- Voltage - Rated :
- 2kV
- Contact Finish - Mating :
- Gold
- Packaging :
- Bulk
- Datasheets
- SMS9PH4D28
SMS Series 1-Row Header Solder Copper Alloy Bulk Through Hole Gold Thermoplastic, Glass Filled 9-Position Board to Cable/Wire 0.901 22.89mm Height
SMS9PH4D28 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the SMS Series.Several benefits come from the Mounting Flange feature.There is a mounting hole at Through Hole.Devices operate at -55°C~125°C operating temperatures.
SMS9PH4D28 Features
SMS series
SMS9PH4D28 Applications
There are a lot of SOURIAU-SUNBANK
SMS9PH4D28 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
