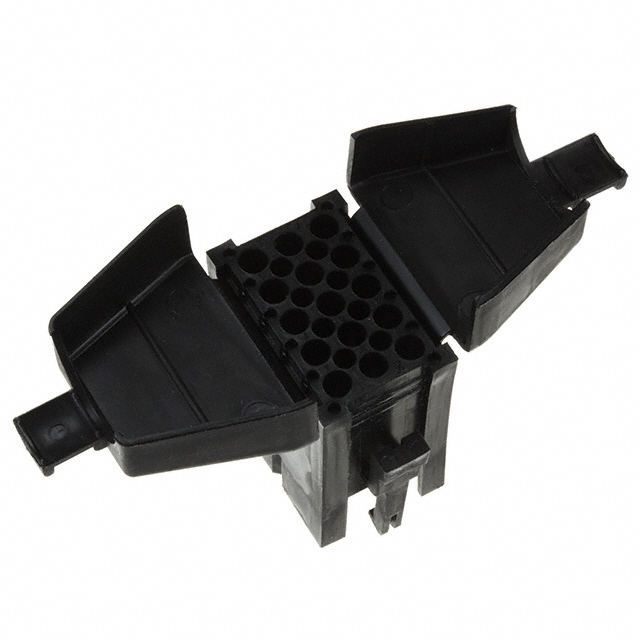

SMS15PDH1
Or copy the link below:
- Mfr.Part #
- SMS15PDH1
- Manufacturer
- Souriau-Sunbank by Eaton
- Package / Case
- Molded
- Datasheet
- Download
- Description
- CONN PLUG HSG 15POS 5.08MM
- Stock
- 580
- In Stock ：
- 580
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Souriau-Sunbank by Eaton
- Product Category :
- Rectangular Connector Housings
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Length :
- 81.3mm
- Factory Lead Time :
- 10 Weeks
- Feature :
- Strain Relief
- Min Operating Temperature :
- -55°C
- Note :
- Contacts Not Included
- Max Operating Temperature :
- 105°C
- Filter Feature :
- No
- Current Rating :
- 13A
- Contact Finish - Mating :
- NOT SPECIFIED
- Mount :
- Free Hanging
- Depth :
- 63.1mm
- IEC Conformance :
- No
- Color :
- Black
- Row Spacing :
- 0.200 (5.08mm)
- Gender :
- Male
- Total Number of Contacts :
- 15
- Housing Material :
- Polyamide
- Series :
- SMS
- REACH SVHC :
- No SVHC
- Connector Type :
- PLUG
- Additional Feature :
- TRIM TRIO
- ECCN Code :
- EAR99
- Mixed Contacts :
- No
- Lead Free :
- Lead Free
- Insulation Resistance :
- 5GOhm
- DIN Conformance :
- No
- RoHS Status :
- ROHS3 Compliant
- Contact Type :
- MALE OR FEMALE
- Number of Rows :
- 3
- Empty Shell :
- No
- Contact Material :
- Gold
- Orientation :
- Straight
- Number of Positions :
- 15
- Fastening Type :
- Latch Lock
- Mounting Type :
- Free Hanging (In-Line)
- Pitch :
- 0.200 5.08mm
- Width :
- 18.6mm
- MIL Conformance :
- No
- Contact Termination :
- Crimp
- Package / Case :
- Molded
- Datasheets
- SMS15PDH1
SMS15PDH1 Documents
3 Rows Plug Black 15 Positions Free Hanging (In-Line) Male or Female Crimp SMS Polyamide
SMS15PDH1 Overview
Currently, it is packaged in Plug.The mounting type of the device is Free Hanging (In-Line).A product of the SMS Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as TRIM TRIO, to name a few.Molded means there is a device enclosed in the packaging.A number of features make the Strain Relief feature more powerful.Free Hanging represents the mounting point for the part.
SMS15PDH1 Features
SMS series
SMS15PDH1 Applications
There are a lot of SOURIAU-SUNBANK
SMS15PDH1 Rectangular Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
